Aquarium Bridge Between Two Tanks: Setup & Buying Guide

An aquarium bridge between two tanks is the cheapest way to turn two boring setups into one connected display. After installing three of these acrylic tunnels across betta and guppy tanks, I can walk you through gap sizing, the priming trick nobody explains, and which gate configuration actually keeps your fish happy. You'll skip the trial-and-error I already paid for.

What an Aquarium Bridge Between Two Tanks Actually Does

Most hobbyists picture a simple U-shaped tube. The reality is more useful: a clear acrylic tunnel that sits across the gap between two side-by-side tanks, with water drawn up into the channel and held there by negative pressure. Fish swim up, cross over, and swim down into the other tank. It looks like something out of a public aquarium and it costs less than a single box of quality fish food.

Beyond the novelty, a swim-through bridge gives your fish real enrichment. Bettas that pace the glass get a new route to patrol. Guppies and endlers use the tunnel constantly once they figure out the food trick — drop a pellet on one side, watch the whole colony cross to investigate. For anyone running a divided quarantine tank, the bridge lets a single sponge filter service both sides while keeping aggressive fish visually separated but chemically connected.

The hardware is straightforward: a cast acrylic body, two slotted divider gates, and a manual air-removal syringe or bulb. No drill holes through your tank rim, no airline tubing snaking across the floor, no return pump humming at night. That last point is what sold me — pure siphon physics does all the work.

Measure Your Tank Gap Before You Buy Anything

This is the single step that ruins most first installs. The bridge has to span the wall between your two aquariums, and "wall" includes the rim, glass thickness, and any center support. Get this wrong and the bridge rocks, leaks, or simply does not fit.

• Measure the empty gap from the outer edge of one tank rim to the outer edge of the other. Do this with both tanks empty and dry on a flat surface.
• Add the glass thickness of each tank if you plan to set them rim-to-rim. A standard 10-gallon rim is usually 1 inch of glass plus a plastic rim cap that adds another quarter inch.
• Subtract for spacing. Tanks should never touch. A 2 to 4 mm gap between rims prevents stress cracks from thermal expansion.
• Confirm water level match. Both tanks need identical fill heights for the siphon to balance. A difference of more than half an inch and one side will siphon dry.

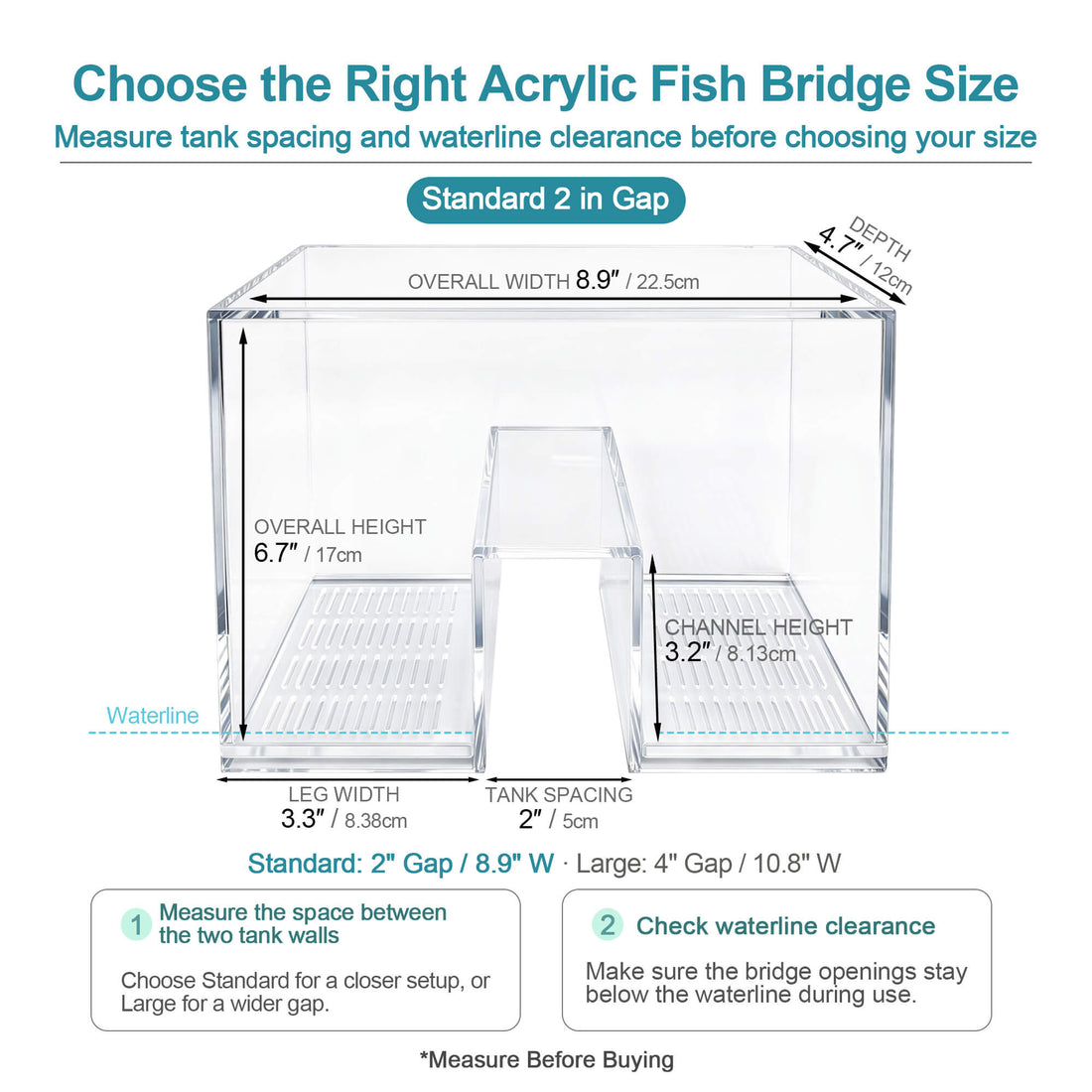

Standard bridge kits fit a 2 inch (5 cm) wall gap. Larger kits fit a 4 inch (10 cm) wall gap. If your measurement falls between those numbers, you are either buying the wrong tank setup or you need a spacer block. Do not try to force a 2 inch bridge onto a 3 inch gap with silicone — the acrylic will bow under water pressure.

The Negative Pressure Priming Trick Nobody Explains

Here is the part the YouTube tutorials skip because it does not look exciting on camera. The bridge works on the same principle as an automatic water changer: water rises into the tunnel, traps a pocket of air at the top, and that trapped air holds the column up against gravity. Lose the air seal and the water drains back into whichever tank is lower.

Priming takes about 90 seconds with the included manual air removal kit:

• Fill the bridge channel with tank water using a small cup or syringe. Get the acrylic wet inside first so the water climbs evenly instead of beading.
• Seat the bridge across the gap with both gates inserted. Press down gently so the bottom edges submerge about 5 mm on each side.
• Attach the air-removal syringe to the top port. Pull slowly until water rises into the bridge and the air bubble shrinks to a small dome at the top.
• Close the valve or cap the port before disconnecting. Any air leak here is the number one cause of slow siphon loss overnight.

If the bridge drains within an hour, the air seal is broken somewhere — usually a worn O-ring on the syringe, a hairline crack in the acrylic, or a gate that is not seated flush. Run your finger along every seam while the tunnel is full and look for the leak.

Gate-In vs Gate-Out: Picking the Right Configuration

Those two slotted divider gates are not decorative. They are the difference between a working setup and a stressed fish.

Gates in (shared flow, fish apart) is the right starting point for almost everyone. Water passes freely through the slotted openings, which keeps temperature, pH, and beneficial bacteria identical on both sides. Your sponge filter on tank A filters tank B without any extra plumbing. Fish see each other through the slots but cannot cross, which is exactly what you want for a male betta on one side and a sorority on the other, or for quarantining new arrivals while the display stays cycled.

Gates out (open crossing) is the showpiece mode. Pull both gates and fish can swim the full loop. Use this once you have confirmed no aggression and no feeding competition. Guppies, endlers, neon tetras, and most peaceful community fish handle open crossing beautifully. Cichlids, large gouramis, and anything territorial will claim the tunnel as a choke point and guard it.

Reinsert the gates anytime without tools — they slide into the channel grooves and seat with light pressure. I leave gates in overnight for the first week and only open the crossing once I see fish calmly investigating the tunnel entrances during the day.

Hands-On Install: A 10 Minute Walkthrough

Two side-by-side 5 gallon tanks on a sturdy counter is the setup I run for this walkthrough. Same logic applies to 10s, 20 longs, or a divided 40 breeder.

1. Level both tanks with a small bubble level on the rim. A 2 mm height difference is enough to push water from the lower tank across the bridge and slowly empty it.
2. Set the tanks with a 2 to 4 mm gap between rims. Use a folded piece of cardstock as a temporary spacer.
3. Match water levels to within 5 mm. Use a sharpie mark on the back glass of each tank as a fill line.
4. Wet the bridge interior with tank water, then seat it across the gap with gates in.
5. Prime using the air removal kit as described above. Confirm the small air dome at the top holds steady.
6. Watch for 10 minutes. If water level stays matched and the air pocket holds, the install is solid.

Total time from unboxing to fish crossing: about 12 minutes. The kit I trust for betta and nano community tanks is the BaoZqua Two-Tank Aquarium Bridge — it ships with both gates pre-installed, a manual air removal syringe, and an illustrated guide that matches the steps above.

Maintenance, Algae Control, and Long-Term Care

Clear acrylic shows every speck of algae, which is either a feature or a bug depending on how you keep tanks. Plan on a 2 minute wipe-down every week.

• Microfiber only. Paper towels scratch acrylic faster than you'd think. The cloth included with most bridge kits is fine; a dedicated acrylic cloth is better.
• Never use window cleaner or ammonia. Even tiny residue is lethal to fish. A damp microfiber followed by a dry buff handles 95% of buildup.
• Re-prime every 2 to 3 weeks. Micro-bubbles slowly accumulate in the channel and reduce the air dome. A quick pull with the syringe restores full lift.
• Check the gate seals monthly. Slotted gates develop a film of biofilm that can slow water exchange. Pop them out, rinse in tank water (never tap water — chlorine kills your cycled bacteria), and reseat.

Expect the acrylic to stay crystal clear for about a year before fine scratches from cleaning start to haze it. At that point a light polish with acrylic restoration compound brings it back. Replace the O-ring on the air removal syringe once a year — they are cheap and a hardened O-ring is the most common cause of slow overnight water loss.

Frequently Asked Questions

How wide of a gap can an aquarium bridge between two tanks span?

Most off-the-shelf aquarium bridges fit either a 2 inch (5 cm) or 4 inch (10 cm) wall gap, measured outer rim to outer rim including glass thickness. Measure your two tanks set in position before ordering, and pick the larger size if you fall between the two — a small spacer block under the bridge handles the extra width. Forcing a 2 inch bridge onto a wider gap will bow the acrylic and break the air seal.

Do fish actually use the bridge or is it just decoration?

Small, curious species — bettas, guppies, endlers, neon tetras, ember tetras, and most rasboras — use the tunnel within hours of install once they spot food or tank mates on the other side. Larger or more territorial fish often claim the bridge as a guard post, which is why the included divider gates exist. Start with gates in for a week, then open the crossing once you see calm investigation rather than flaring or charging.

Will the bridge drain one tank dry if the power goes out?

No. The negative pressure siphon only flows while the air seal at the top of the tunnel is intact. Power outages do not affect it because there is no pump. The only failure mode is air slowly leaking past the syringe O-ring or a cracked acrylic seam, which loses maybe a quarter inch of water per night — easy to spot and fix during your weekly wipe-down.

Can I run a single filter for both tanks through the bridge?

Yes, and it is one of the main reasons hobbyists install these. With both divider gates inserted, water flows freely between tanks through the slotted openings while fish stay separated. A single sponge filter or small HOB on tank A circulates and filters tank B, which keeps parameters identical and cuts your equipment cost in half.

Is acrylic safe for freshwater and saltwater setups?

Cast acrylic is inert and safe for both freshwater and saltwater. In marine tanks, wipe the tunnel a bit more often because coralline algae shows up fast on clear surfaces. Avoid acrylic-safe silicone if you ever need to reseat a gate, and never use acetone or alcohol-based cleaners anywhere near the bridge — both craze the acrylic within seconds.
