Aquarium Drip Box Filter Setup: A Practical DIY Guide

If your hang-on-back filter is too loud, your canister setup feels like overkill, or you're just looking for simple filtration that actually works, a drip box filter might be exactly what your tank needs. I've been running these wall-mounted units on several of my tanks for years, and they deliver surprisingly clean water with minimal fuss. This guide walks you through every step of aquarium drip box filter setup so you can get yours running smoothly without trial and error eating up your weekend.

What Is a Drip Box Filter and Why Choose One

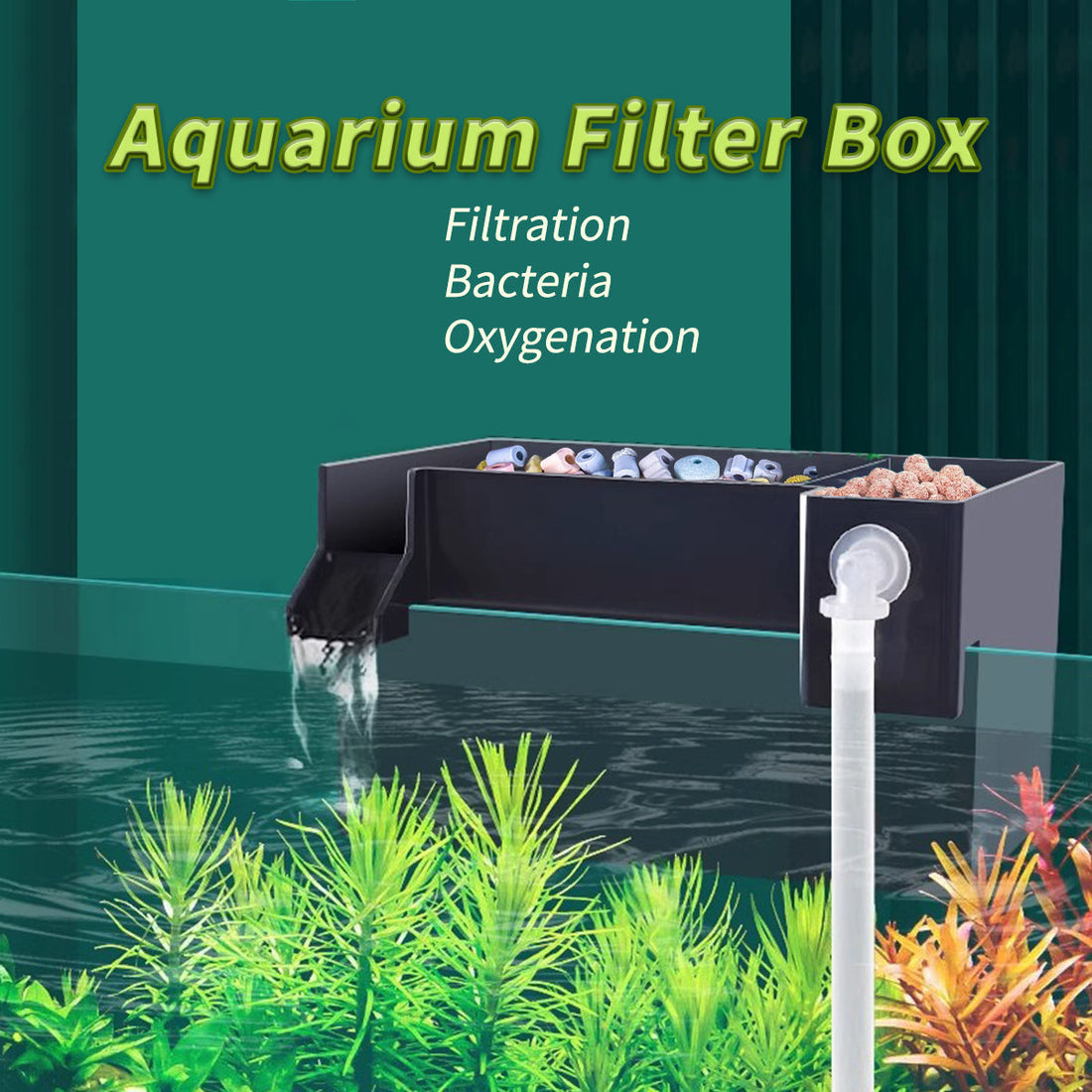

A drip box filter—sometimes called a wall-mounted or external drip box filter—is a simple filtration system that hangs on the outside of your aquarium rim. Water gets pumped up from the tank, flows through the filter box as a gentle waterfall, and returns via an inlet slope. The design exposes water to air throughout the process, which naturally increases dissolved oxygen levels.

These filters work well for small to medium aquariums, especially planted tanks, shrimp setups, or tanks with sensitive fish that don't thrive in high-flow environments. The waterfall action provides surface agitation without creating strong currents. If you've been struggling with filters that are either too powerful or too noisy, the drip box approach solves both problems at once.

The BaoZqua external wall-mounted filter follows this same principle. It combines physical and biological filtration in one compact unit that sits outside your tank, freeing up valuable interior space. You supply your own submersible pump, which gives you full control over flow rate rather than being locked into whatever motor the manufacturer chose.

Gathering Your Components Before You Start

Successful aquarium drip box filter setup starts with having everything ready before you touch your tank. Here's what you need:

• Wall-mounted drip box filter (the main unit)
• Submersible water pump (not included with most drip boxes—matching this to your tank size is critical)
• Filter media: mechanical (filter floss, sponge), biological (ceramic rings, bio balls), and optionally chemical (activated carbon)
• Tubing: flexible vinyl tubing to connect pump to filter inlet
• Scissors or tubing cutter
• Bucket or towels for water splashes

Don't skip the pump sizing step. A pump that's too weak won't create adequate filtration flow, while one that's too strong turns your gentle drip box into a mini waterfall and defeats the quiet, low-flow purpose of this system. For most 10-30 gallon tanks, a pump rated 80-200 GPH (gallons per hour) works well, but always check your specific drip box model's recommendations.

Choosing the Right Pump for Your Drip Box Filter

Pump selection makes or breaks your aquarium drip box filter setup. Too much flow creates noise and stress for fish. Too little flow means poor filtration and water quality issues.

When shopping for a submersible pump, look at both the flow rate (GPH) and the head height. Head height measures how high the pump can push water vertically. If your drip box sits several inches above water level, you need a pump with enough head rating to handle that lift.

For a 20-gallon tank with a standard drip box mounted at rim level, a 150-200 GPH pump usually hits the sweet spot. You want enough flow to cycle your tank volume 3-5 times per hour, but not so much that the waterfall sounds like a brook. If you hear constant dripping or splashing, your pump is oversized for the setup.

Variable-speed pumps are ideal if your budget allows. They let you dial in the exact flow you need and reduce speed during feeding time or when housing sensitive species.

Step-by-Step Installation of Your Drip Box Filter

Here's how to complete your aquarium drip box filter setup without emptying your tank or flooding your stand:

Step 1: Position the drip box on the aquarium rim. Most models hang over the rim from outside. Make sure it sits level and the outlet (waterfall edge) faces inward toward your tank for even distribution.

Step 2: Connect your pump using flexible tubing. Place the submersible pump inside your tank, ideally near the back wall. Run tubing from the pump outlet up to the drip box inlet port. Cut the tubing to length—avoid tight bends that restrict flow.

Step 3: Load filter media in the correct order. Place coarse mechanical media (sponges) first to catch debris, then finer media (filter floss), then biological media (ceramic rings or bio balls) last. This sequence protects your biological media from clogging prematurely.

Step 4: Fill the drip box with water before turning on the pump. This primes the system and prevents the pump from running dry. Add water until it reaches the overflow level.

Step 5: Test your flow and adjust. Turn on the pump and watch how water returns to the tank. The inlet slope should spread water gently without splashing. Tweak your pump flow rate if needed.

Optimizing Filter Media for Better Water Quality

The real work in a drip box filter happens in the media layers. A well-loaded drip box can match or beat more expensive filtration systems when set up correctly.

For physical filtration, use a combination of coarse sponge and fine filter floss. The sponge catches larger particles first, protecting the finer floss from clogging. Replace or rinse the floss every 1-2 weeks, but clean the sponge less frequently (every 3-4 weeks) in established tanks.

Biological filtration is where your drip box earns its keep. Load it with high-quality ceramic rings, lava rock, or specialized bio balls. These surfaces colonize with beneficial bacteria that convert ammonia and nitrite into less harmful nitrate. Never replace all your biological media at once—this kills your bacteria colony and crashes your nitrogen cycle.

Adding activated carbon is optional but useful if you're removing medications, odors, or yellowing tannins from driftwood. Place it in a mesh bag so it doesn't disperse throughout the box. Replace every 3-4 weeks for best results.

The waterfall design of drip box filters exposes water directly to air, boosting oxygen levels for both your fish and the beneficial bacteria in your bio media. This is a genuine advantage over sealed canister filters in low-tech setups.

Common Problems and How to Fix Them

Even a properly planned aquarium drip box filter setup hits snags occasionally. Here are the issues I see most often and their fixes:

Excessive noise: If your drip box sounds like a rice cooker, check your pump size first. Also verify the inlet slope is correctly positioned—if water falls off the edge instead of flowing down the slope, you'll get dripping sounds. Adding filter floss over the outlet area dampens splashing.

Low flow or no flow: Check for kinks or blockages in your tubing. Make sure your pump isn't air-locked (submerge it fully and tilt to release bubbles). Verify the pump is rated high enough for your head height.

Water leaking from the box: Overfilling causes overflows. The water level inside the drip box should stay below the rim. Also inspect seals and connections—tubing can slip off over time if not secured with clamps.

Filter media channeling: If water finds paths through your media instead of flowing evenly, break up compacted layers and redistribute them. Fluffing your filter floss monthly prevents this.

When to Use Alternative Filtration Methods

Drip box filters excel in specific situations, but they're not universal solutions. Understanding when to pivot to other filtration types saves you frustration down the road.

Switch away from a drip box if you need heavy-duty biological filtration for heavily stocked tanks, large cichlids, or predator setups. Canister filters handle more media volume and higher flow rates for big bioloads.

If you keep high-flow species like reef tanks,大型鱼, or active swimmers, a drip box alone won't provide enough water movement. Consider combining it with a powerhead or upgrading to a stronger filter system.

For most planted tanks under 40 gallons with moderate fish loads, though, a drip box filter handles the job beautifully. The gentle waterfall oxygenates your water column, the biological media maintains stable parameters, and the compact footprint keeps your aquascape visible without bulky equipment dominating the view.

Maintenance Schedule for Long-Term Success

A consistent maintenance routine keeps your drip box filter running efficiently for years. Here's what I do and when:

Weekly: Check water level in the tank (evaporation affects pump performance). Inspect the outlet for debris buildup. Do a quick visual flow check.

Every 2 weeks: Rinse filter floss or replace if heavily loaded. Swish sponge media in old tank water (never tap water—it kills beneficial bacteria). Check tubing for algae or sludge.

Monthly: Deep-clean the drip box interior. Remove and inspect all media layers. Replace activated carbon if used. Check pump impeller for debris and smooth operation.

Quarterly: Full media assessment. Replace any degraded sponge or mechanical media. Evaluate whether biological media is clogged and needs partial replacement. Inspect seals and connections.

Consistent maintenance prevents the common pitfalls that make hobbyists give up on drip box filters prematurely. A clean, well-maintained unit provides excellent water quality with minimal electricity draw.

Frequently Asked Questions

How does a drip box filter work in an aquarium?

A drip box filter works by pumping water from your tank up to an external box mounted on the aquarium rim. Water flows through the filter media as a gentle waterfall and returns to the tank. This design exposes water to air throughout the process, naturally increasing dissolved oxygen levels while providing mechanical and biological filtration through the media layers.

What size pump do I need for a drip box filter?

For most small to medium aquariums (10-40 gallons), choose a submersible pump rated 100-250 GPH depending on your tank size and desired turnover rate. Aim for 3-5 times your tank volume per hour, but account for head height if your drip box sits several inches above water level. A 20-gallon tank typically needs around 150 GPH for effective filtration.

How often should I clean my drip box filter media?

Rinse or replace mechanical media (filter floss, sponges) every 1-2 weeks to maintain flow. Biological media (ceramic rings, bio balls) needs cleaning only monthly, and always use old tank water—never tap water—because chlorinated water kills the beneficial bacteria your tank depends on.

Can a drip box filter handle heavily stocked aquariums?

Drip box filters work best for lightly to moderately stocked tanks. If you keep high-bioload setups like large cichlids, predator tanks, or heavily planted aquariums with many fish, a canister filter or sump system handles the workload better. For shrimp tanks, planted tanks, or small community setups, drip boxes perform excellently.

Why is my drip box filter making noise?

Noisy operation usually comes from three causes: an oversized pump pushing too much flow, water falling off the inlet slope instead of flowing down smoothly, or splashing from the outlet area. Reduce pump speed if possible, adjust the inlet slope position, or add filter floss over the outlet to dampen sound.
