Aquarium Overhead Filter Setup: How to Layer Your Media

If your cartridge filter keeps clogging and your fish keep getting fin rot, your filtration system is the problem. An overhead aquarium filter lets you build exactly what your tank needs, chamber by chamber, using mechanical, biological, and chemical media in any order you choose. This guide walks through the full setup process, including the pump math most guides skip and how wet-dry separation actually changes your bacteria game. You'll leave with a clear plan, not a pile of guesswork.

Why Choose an Overhead Filter?

Most hobbyists start with hang-on-back (HOB) or internal filters because they're simple and cheap. Those work fine until you try to keep a heavily stocked tank crystal clear or run a planted setup with high bioload. That's where overhead aquarium filters earn their space above your tank.

The key difference is modular media chambers. Instead of squeezing everything into a cartridge, you get discrete compartments that you fill, arrange, and replace on your own terms. Some overhead filters even offer wet-dry separation — a drip tray above the water line where beneficial bacteria get oxygen directly from air, not water. That changes everything for biological filtration efficiency.

The BaoZqua overhead filter lineup uses clear acrylic bodies so you can see water flow and spot clogs before flow rate drops. Lift-off media trays make cleaning fast without reaching into the tank. For anyone tired of buying proprietary cartridges that cost more than the fish inside, this is a real alternative.

You control the flow rate, the media types, and the chamber order. That's not a small thing when you're cycling a new tank or running a quarantine system that needs different chemistry than your display.

How Wet-Dry Separation Actually Works

Standard submerged filters — including HOB and canister designs — keep biological media fully underwater. That works, but it doesn't give aerobic bacteria the best environment. Those bacteria need oxygen to convert ammonia to nitrite and then to nitrate. Submerged media gets oxygen from water diffusion alone.

Wet-dry overhead filters solve this by dripping water through a tray above the tank water line. The media stays moist — "wet" — but gets constant air exposure — "dry." This dramatically increases oxygen availability at the bacterial surface. The result is faster ammonia processing and higher nitrification capacity per volume of media.

In practice, this means your biological stage can handle more fish per gallon before ammonia spikes appear after water changes. It also means you can push higher flow rates through the filter without sacrificing biological conversion, because the air exposure keeps bacteria healthy under load.

Not every overhead filter offers wet-dry separation. BaoZqua's upgraded 5-chamber and 6-chamber models include drip-tray configurations specifically designed for this. If you're running a tank with sensitive species or want to push stocking limits, this is worth building into your setup from day one.

Calculate the Right Pump Size (The Math Most Guides Skip)

Pump sizing is the step that trips up most beginners and even some veterans. Too much flow tears apart your wet-dry section and reduces contact time for biological conversion. Too little and debris builds up in your chambers before it ever reaches mechanical filtration.

The target flow rate for most freshwater overhead filter setups is 4 to 6 times your tank volume per hour. A 40-gallon tank needs 160–240 gallons per hour (GPH) at the filter intake. For saltwater, lean toward 5–6x because bio-load tends to be higher.

Don't just buy a pump rated at your target GPH. Subtract 20–30% for head pressure loss through the intake hose, elevation change, and any elbows in the line. If your pump is rated 200 GPH and you need to push water 18 inches up with two elbows, actual output at the filter might be 150 GPH. That puts your 40-gallon tank at roughly 3.75x turnover — below the recommended minimum.

Example: for a 55-gallon tank targeting 5x turnover (275 GPH), you'd want a pump rated at least 350–400 GPH to account for head loss and maintain effective filtration performance through all your media chambers under load.

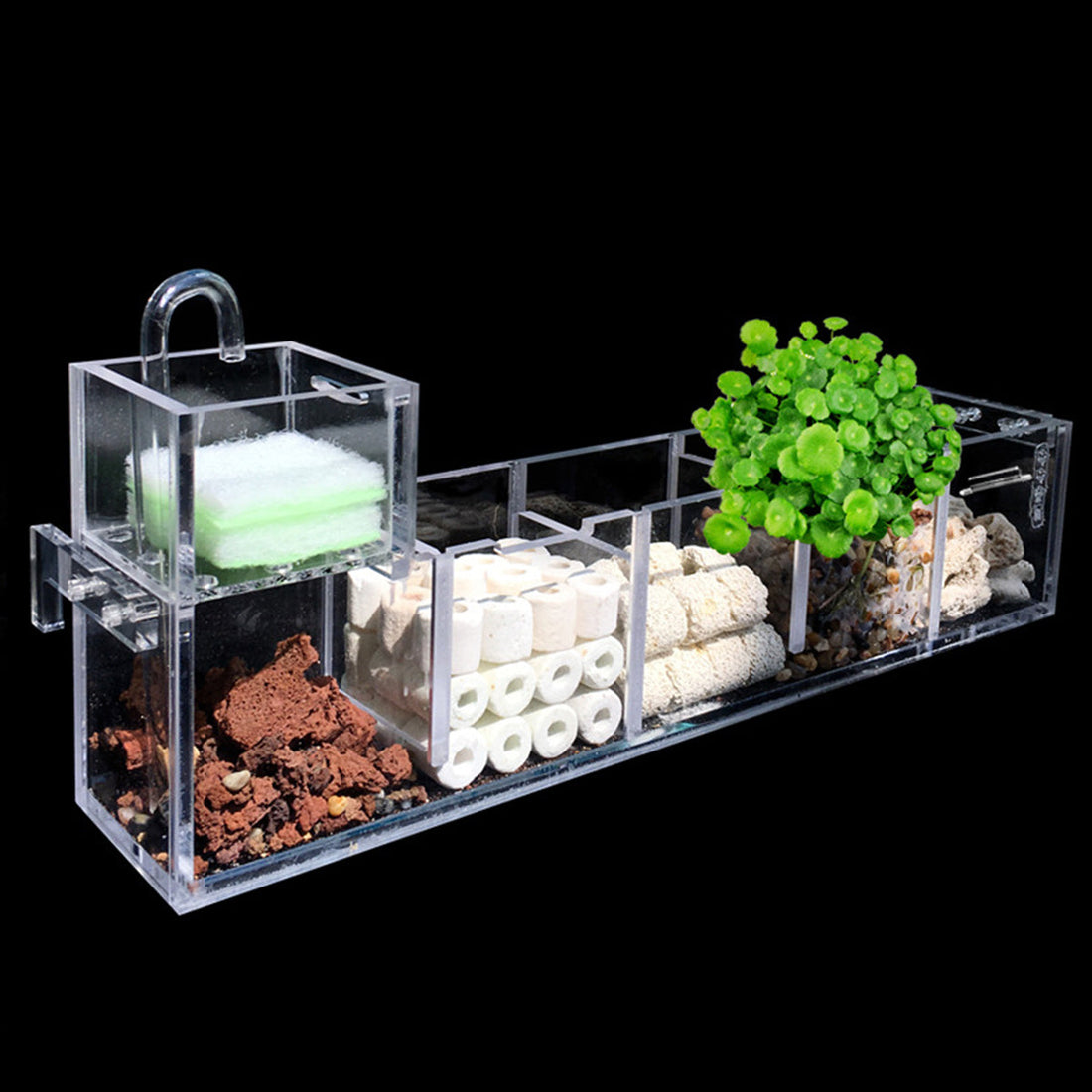

Layer Your Media: Chamber-by-Chamber Breakdown

Here's where most guides give you vague advice like "put your biomedia in the middle." We'll do better. The order matters because water flows through your chambers sequentially, and each stage handles a different job.

Stage 1 — Mechanical filtration: This goes first. Floss or coarse sponge catches solid waste before it reaches biological media. Clogged mechanical media is visible and washable. Replace or rinse weekly during high-stock periods. Don't skip this stage — it protects everything downstream.

Stage 2-3 — Biological filtration: Ceramic rings, lava rock, or bio-balls colonize with beneficial bacteria. This is where ammonia and nitrite get processed. In a wet-dry configuration, these chambers deliver the highest conversion rates because air exposure supercharges bacterial activity. Aim for at least two biological chambers if your filter supports it.

Stage 4-6 — Chemical filtration (optional): Activated carbon, phosphate removers, or ion exchange resin go in the final chamber. Use this only when needed — medicating the tank, removing tannins from driftwood, or cutting odors. Chemical media degrades and needs replacing every 2–4 weeks depending on tank conditions.

The modular tray system in BaoZqua overhead filters lets you customize this sequence. Running a fish-in cycle? Stack extra biological media in the early chambers. Adding medication? Drop a carbon tray in last and pull it when treatment ends.

Maintenance Schedule That Keeps Your Cycle Stable

Overhead filter maintenance is simple when you know the rule: never clean everything at once. Your biological media holds the beneficial bacteria that keep your cycle functional. Scrub it with tap water and you'll crash your ammonia processing for a week or more.

Rotate cleaning by chamber on a two to four-week cycle. Take out the mechanical stage first — that's your weekly or bi-weekly task. Rinse that sponge or replace the floss in a bucket of saved tank water. Check your biological chambers monthly; only rinse if flow drops noticeably and only use tank water or dechlorinated water for the rinse. Never use hot water.

The clear acrylic housing on overhead filters makes this easy. You see exactly what needs attention instead of guessing. If a chamber looks packed with debris, clean that one. Leave the others for next cycle.

Check your pump monthly for debris in the intake screen. A partially blocked intake reduces flow silently and is the most common cause of unexplained ammonia spikes in overhead-filtered tanks. Keeping the intake clear is a five-minute task that prevents hours of emergency water changes.

Common Mistakes to Avoid

Running the wrong flow rate is the biggest error. High flow through a wet-dry section sounds good in theory — more water processed — but it floods the drip tray before water has time to aerate properly. You lose the wet-dry advantage entirely and may even damage bacterial colonies with mechanical shear forces. Keep your turnover in the recommended 4–6x range and test with a flow meter if you're unsure.

Using activated carbon continuously is the second most common mistake. Carbon removes trace elements your planted tank needs, alters medication effectiveness unpredictably, and provides almost no biological surface area. If you're not removing something specific, leave the carbon tray out.

Letting the pump run dry during maintenance wipes out biological bacteria faster than you might think. Once biomedia dries out, the bacteria colony dies within hours. If you're doing heavy cleaning, keep the pump running or finish the job quickly enough that the media stays moist. Never let your biological chambers go completely dry.

Finally, don't pack chambers too tightly. The goal is water-to-media contact, not maximum media volume. If water can't flow through a chamber because it's packed solid, you get dead zones where anaerobic bacteria produce hydrogen sulfide — and that smell means trouble for your fish.

Frequently Asked Questions

Can I use an overhead aquarium filter as my only filtration for a 40-gallon tank?

Yes. A properly sized overhead filter with 4–5 media chambers handles mechanical, biological, and chemical filtration for tanks up to 55 gallons without a secondary filter. The key is matching your pump flow rate to 4–6x tank volume per hour and distributing media across enough chambers. Single-chamber designs are less effective at handling full bioload, so choose a multi-chamber model if you want a self-contained system.

What pump flow rate do I need for a wet-dry overhead filter?

Calculate 4–6x your tank volume per hour and subtract 20–30% for head pressure loss through intake tubing and elevation. For a 40-gallon tank targeting 5x turnover (200 GPH), you'd want a pump rated 260–280 GPH to account for losses and maintain biological efficiency in the wet-dry section. Never oversize the pump — high flow rate through a drip tray reduces contact time and oxygen exposure where it matters most.

How often should I clean the media trays in an overhead filter?

Clean mechanical media every 1–2 weeks when flow visibly drops. Rinse biological media only when clogged — typically every 4–6 weeks — using tank water or dechlorinated water. Chemical media (activated carbon) needs replacement every 2–4 weeks when in use. Never clean all chambers simultaneously or you'll destabilize your nitrogen cycle by wiping out your beneficial bacteria population.
