Aquarium Return Pump Sizing Guide: Match GPH to Your Tank

Most hobbyists buy the wrong return pump on their first try. They grab whatever GPH number looks impressive on the box, then wonder why their display tank has zero flow or their sump sounds like a jet engine. I made this mistake too, back when I was running my first reef tank. After years of trial and error—and a few drowned electronics—I learned that getting your aquarium return pump sizing right comes down to one thing: matching actual flow to your specific setup. This guide cuts through the marketing noise with real head-height calculations for tanks between 50 and 100 gallons, so you can dial in the perfect pump the first time.

Why Your Aquarium Return Pump Size Actually Matters

Your return pump does more than move water. It drives your entire filtration system—sump flow, protein skimmer operation, and nutrient export all depend on consistent, adequate flow from your return line. Pick a pump that's too weak, and you're starving your filter socks, short-cycling your skimmer, and letting detritus settle in dead spots. Pick one that's too strong, and you're fighting overflows, creating noisy flow that stresses fish, and wasting energy dollars every month.

The sweet spot isn't just about tank volume. A 75-gallon tank with a 36-inch-tall sump needs a very different pump than a 75-gallon tank with a 12-inch-tall sump—even though both hold the same amount of water. That's because gravity fights your pump every inch of vertical lift. The taller the path water travels, the more pressure your pump needs to maintain its rated flow.

Getting this right means your equipment performs as designed, your fish stay healthier, and you don't end up upgrading six months later. Let's dig into the numbers that actually matter.

Understanding Head Height and Flow Loss in Aquarium Setups

Head height—also called head pressure—is the vertical distance your pump must push water from its intake (usually in your sump) up to its discharge point (your display tank). Every foot of head kills your pump's actual flow rate, sometimes by 20-30% depending on the pump and plumbing.

Here's what most sizing guides get wrong: they assume your pump will deliver its rated GPH at your actual head height. It won't. A pump rated for 580 GPH at zero head might only deliver 350-400 GPH at four feet of head with standard 1-inch PVC. Add elbows, check valves, and bulkheads, and you're losing even more.

For most hobbyist sumps under a standard 48-inch tank, your dynamic head height (accounting for water level differences) typically falls between 3 and 5 feet. This is the number you plug into any serious sizing calculation. If you're running a custom tall setup or a basement sump, measure carefully—those extra feet matter more than most people realize.

Plumbing diameter plays a huge role too. Smaller diameter tubing creates more friction loss, forcing your pump to work harder. Most 50-100 gallon tanks benefit from 1-inch or 1.25-inch return lines, which balance flow capacity with manageable tubing sizes.

Calculating Your GPH Needs for 50-100 Gallon Tanks

General rule of thumb: your return pump should cycle your total system volume 4-6 times per hour. For a 75-gallon display plus sump water, that means targeting 300-450 GPH of actual delivered flow—not rated flow. But that range is just a starting point.

Fish-only tanks with standard filtration often sit comfortably at 4x turnover. Reef tanks with heavy coral loads and LPS or SPS species typically want 5-6x or even higher, especially if you're running aZk

Let me walk you through a real example. My previous build was a 90-gallon reef with a 20-gallon sump. The water level sat about 4 feet above the pump. Using 1-inch PVC with two 90-degree elbows and a check valve, my friction loss totaled roughly 2.5 feet equivalent. So my dynamic head was around 6.5 feet.

At that head height, a pump rated at 580 GPH at zero head would realistically deliver around 320-350 GPH. That's barely 4x turnover on a 90-gallon system—not ideal for a reef. I needed to account for this when choosing my pump, or accept that my skimmer and display flow would suffer.

Use this framework for your own tank: measure your vertical lift, estimate your plumbing friction losses, then find a pump that hits your target GPH at that head height, not at zero.

Matching Pump Specs to Your Aquarium Setup

Once you know your target flow at your actual head height, you can match pump specs more intelligently. Look for pumps that publish flow charts showing performance at different head heights—this data is way more useful than a single rated GPH number.

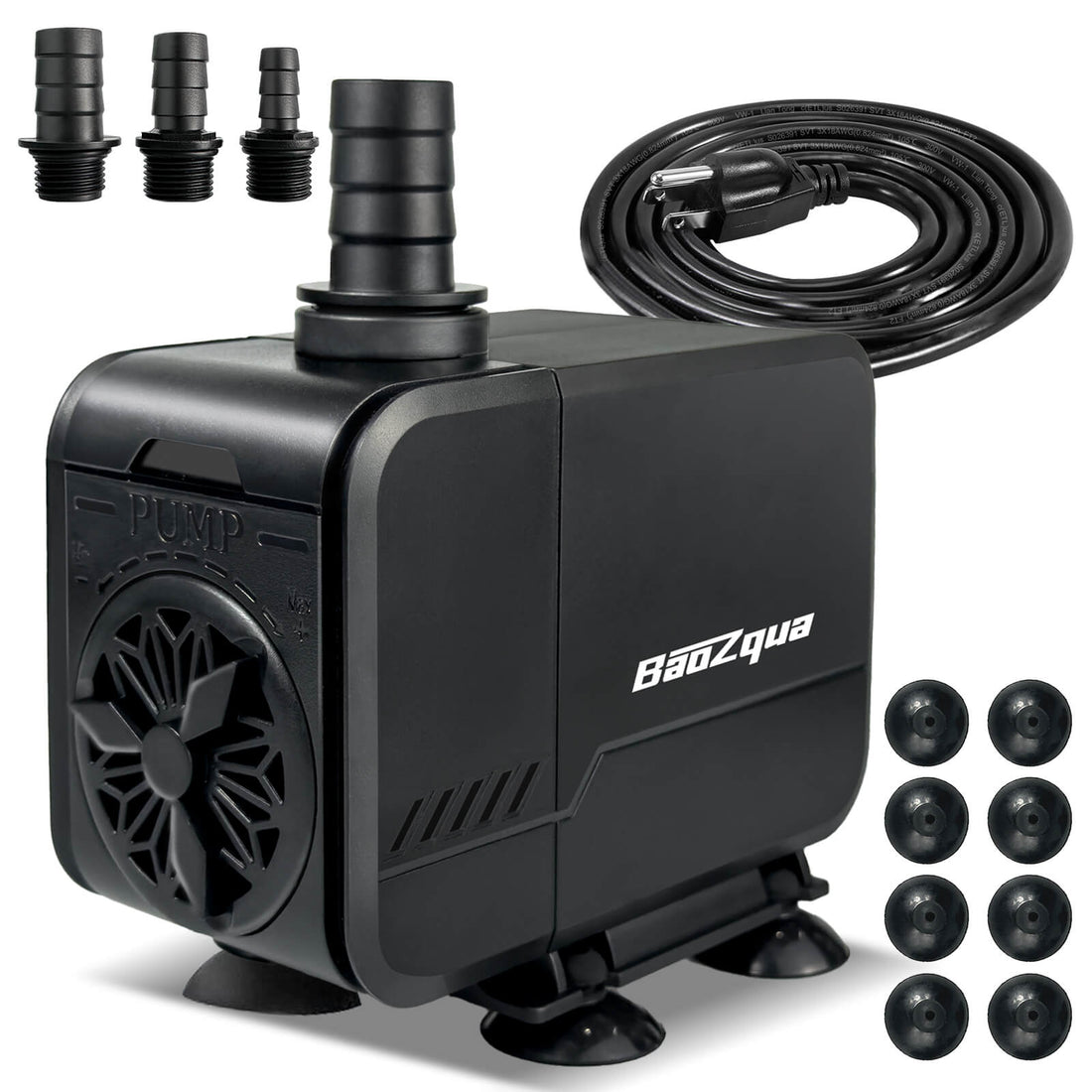

The BaoZqua 580GPH submersible pump delivers its rated flow at relatively low head heights, making it well-suited for sumps with 3-4 feet of dynamic head. At higher head heights typical of taller custom setups, flow drops significantly. For 50-80 gallon tanks with standard sump configurations, it provides adequate 4-5x turnover. For reef systems or larger 100-gallon tanks, you'd want to verify the actual delivered flow at your specific head height before committing.

Other specs matter too. Noise level affects where you can place the pump—submersible pumps in your sump are generally quieter than external pumps in a standalone cabinet. Energy efficiency matters for tanks running 24/7. Adjustable flow is a huge plus, letting you dial back flow during feeding time or when running delicate species.

Don't forget about pump reliability and maintenance. Pumps that are hard to disassemble or have proprietary parts become nightmares when the rotor needs cleaning. Look for tool-free disassembly and widely available replacement parts—your future self will thank you.

Installation Tips for Optimal Return Pump Performance

Proper installation can add or subtract 10-20% from your effective flow. Position your pump as low as possible in your sump—deeper placement means less vertical lift from the water surface to the pump intake. Many sumps have a dedicated pump compartment specifically for this reason.

Use short, straight tubing runs whenever possible. Each 90-degree elbow adds the equivalent of 1-2 feet of head height in friction loss. If you're fighting flow issues, routing your return line more directly often helps more than buying a bigger pump. Bypass unnecessary fittings and keep your plumbing diameter consistent—stepping down to smaller tubing creates a bottleneck.

Install a ball valve on your return line if your pump doesn't have adjustable flow. This gives you manual control over delivered flow rate without starving your pump or causing cavitation. Cavitation happens when flow is severely restricted, creating tiny vapor bubbles that damage impellers over time—keep your valve open at least halfway to avoid this.

Consider a check valve on the return line to prevent back siphoning when your pump shuts off. Without one, your display water can drain back into your sump, potentially overflowing it. Inline check valves add some friction loss, so factor that into your head height calculations.

Maintenance and Troubleshooting Your Aquarium Return Pump

Every pump needs periodic love. Mineral deposits, algae spores, and organic gunk build up on impellers and housings over time, gradually reducing flow. Most submersible pumps should have their internals cleaned every 2-3 months, or monthly if you're running hard water or a heavily fed system.

Watch for signs your pump is struggling. Unusual noise—grinding, rattling, or high-pitched whine—often means a worn bearing or debris caught in the impeller. Reduced flow that isn't explained by clogged intake strainers points to scaling or impeller wear. A pump running hotter than normal might be cavitating due to restricted flow or approaching end-of-life.

If your pump fails entirely, you lose your entire filtration loop fast. Keep a spare impeller on hand—most manufacturers sell them separately—and consider having a backup pump for critical systems. For most 50-100 gallon freshwater or low-tech reef setups, a spare pump doesn't break the bank and provides insurance against catastrophic failure.

Record your normal flow rate when you set everything up. A simple mark on your sump or a bucket test every few months lets you spot degradation before it becomes a problem. If your flow drops 20% or more, it's time to clean the pump or check for blockages.

Choosing Your Next Aquarium Return Pump

Armed with the formulas and guidelines above, you're ready to pick a pump that actually fits your setup. Remember: target your delivered flow at your actual head height, not the marketing number on the box. For most 50-100 gallon tanks with standard sumps, a pump in the 500-700 GPH range handles 4-6x turnover adequately.

If you're running a freshwater planted tank, aim for the lower end of that range—too much flow can make it hard to keep CO2 localized. For reef tanks pushing heavy filtration, lean toward higher turnover or plan to use a controller to pulse flow for better nutrient export.

Take your time on the measurement step. Ten minutes with a tape measure and a calculator prevents months of frustration and the cost of an wrong pump. Your fish, corals, and equipment will perform better with predictable, appropriate flow—and so will you, knowing your system is dialed in.

Frequently Asked Questions

How do I calculate the right GPH for my aquarium return pump?

Calculate your target flow by multiplying your total system volume by 4-6x turnover per hour. Then measure your dynamic head height (vertical lift from pump to discharge) and estimate plumbing friction losses. Use a pump manufacturer's flow chart to find which model delivers your target GPH at your actual head height, not its rated zero-head number.

What size pump do I need for a 75-gallon aquarium?

For a 75-gallon tank, target 300-450 GPH of delivered flow. With a standard sump configuration and 3-4 feet of head height, a pump rated around 500-580 GPH at zero head typically delivers adequate turnover. Account for your specific plumbing and head height—taller sumps or smaller diameter tubing require more powerful pumps.

Does head height really affect aquarium pump performance that much?

Yes, significantly. Every foot of head height can reduce flow by 15-30% depending on the pump and plumbing. A pump rated at 580 GPH might only deliver 350-400 GPH at 4 feet of head through standard 1-inch PVC. Ignoring head height is the most common reason hobbyists end up with inadequate return flow.

How often should I clean my aquarium return pump?

Clean your return pump internals every 2-3 months under normal conditions, or monthly if you run hard water or feed heavily. Signs of needed cleaning include reduced flow, unusual noise, or the pump running hotter than usual. Regular cleaning maintains performance and extends pump life.
