How to Build an Aquarium Waterfall Pump System (DIY Guide)

A properly built aquarium waterfall adds movement, aeration, and visual appeal that still water simply cannot match. If you have been searching for clear pump-specific instructions, you are in the right place. This guide walks you through every decision from selecting flow rates to positioning suction cups so your waterfall runs smoothly and quietly. By the end, you will know exactly how to build an aquarium waterfall pump setup that fits your tank dimensions and aesthetic goals.

Why Build a Waterfall in Your Aquarium

Aquarium waterfalls do more than look nice. The constant surface agitation boosts oxygen exchange, which benefits fish, shrimp, and live plants alike. Water movement also helps prevent dead spots where debris settles and reduces the likelihood of algae blooms in stagnant corners.

For hobbyists running planted tanks, a waterfall can distribute CO2 more evenly throughout the water column. In brackish or freshwater setups with surface-dwelling fish like hatchetfish or bettas, gentle flow from a waterfall mimics natural stream conditions without creating the strong currents that stress them.

The sound of trickling water is an unexpected bonus. Many hobbyists report that the gentle white noise helps mask household sounds that might otherwise startle sensitive fish. Whether you keep a 30-gallon community tank or a larger pond setup, a waterfall adds both form and function.

Selecting the Right Pump for Your Aquarium Waterfall

The pump is the heart of your waterfall, and choosing one with appropriate flow capacity makes or breaks the project. A pump rated between 300 and 600 gallons per hour (GPH) works well for most desktop aquariums in the 20 to 60-gallon range. Larger tanks or taller waterfall structures demand more head pressure, which means you need a pump with sufficient lift capacity.

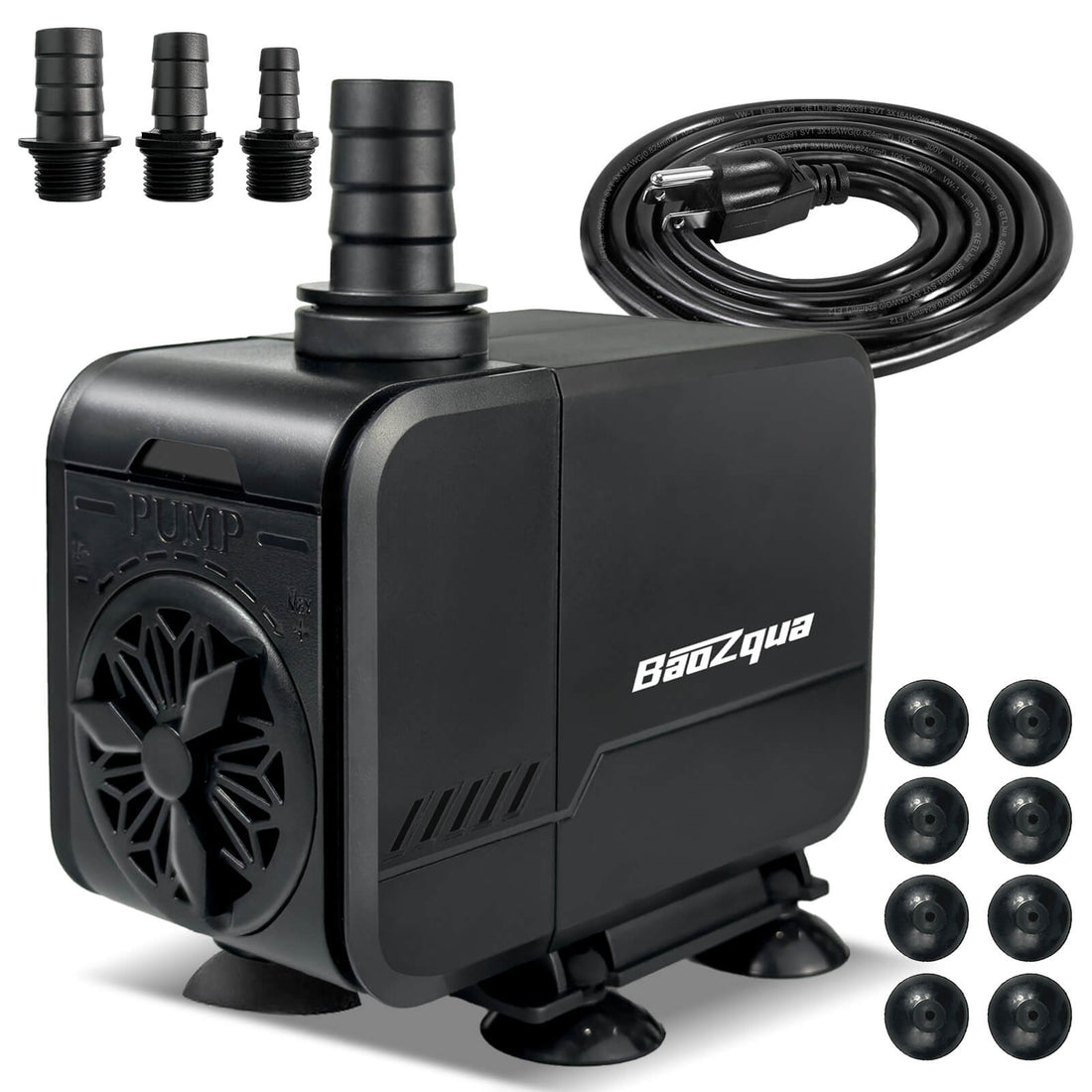

The BaoZqua 580GPH submersible pump pushes 580 gallons per hour with a 32-watt motor and can lift water approximately 7.8 feet. That combination covers most standard aquarium heights while keeping energy consumption reasonable. The variable flow control built into this pump lets you dial back the output if you find the cascade too aggressive for your fish.

Look for pumps that run under 40 decibels if your tank sits in a quiet room or bedroom. Submersible pumps also eliminate the need for external plumbing, which simplifies installation considerably. Make sure any pump you choose has a fully enclosed power cord rated for continuous use.

Designing Your Aquarium Waterfall Layout

Before gathering materials, sketch your waterfall on paper. Decide how tall you want the cascade, how many tiers or shelves it will have, and where water will enter versus where it spills back into the tank. Natural-looking waterfalls usually feature two or three shelves arranged in a stepped pattern rather than a single straight drop.

Consider the background of your aquarium. Background-mounted waterfalls work well if you want to create the illusion of water emerging from a rocky outcrop. Mid-tank waterfalls can serve as dividers between species, while corner installations maximize flow without sacrificing swimming space in the center of the tank.

For the structure itself, aquarium-safe silicone and rock or resin waterfall foam are the most common approaches. Live mosses and java ferns attach easily to damp surfaces and soften the look of bare rock over time. Avoid materials that might alter your water chemistry, such as untreated driftwood that can tint water or limestone if you keep soft-water species.

Step-by-Step Construction of Your Waterfall

Start by cleaning any hardscape materials with plain water and letting them dry completely. Arrange the rocks or foam structure dry to confirm your layout before committing to adhesive. When you are satisfied with the design, apply aquarium-safe silicone or waterfall foam to the base of each component and press them firmly into position against the aquarium glass or background.

Allow the adhesive to cure for at least 24 to 48 hours with the tank empty to ensure a watertight seal. Once cured, fill the tank partially and check for any leaks around the base of the structure before proceeding. Minor adjustments are easier to fix now than after the pump is installed and everything is running.

Position your waterfall so the spill point sits several inches below the water surface. This depth allows the falling water to reoxygenate as it breaks the surface while preventing excessive splash that could lower water levels quickly. Secure the structure with additional suction cups or clips if needed, especially for taller builds that might shift under the weight of flowing water.

Installing and Routing the Pump Tubing

Place the submersible pump on the tank bottom near the base of your waterfall. The included suction cups keep the unit stable even when running at full flow. Route flexible tubing from the pump outlet up through the center or back of your waterfall structure to the highest point where water will emerge.

Many pumps come with multiple nozzle sizes. The 0.51-inch nozzle restricts flow for a gentle trickle, while the 0.75-inch option delivers a stronger cascade suited for larger tanks or taller drops. Experiment with different nozzles after the system is running to find the flow rate that matches your aesthetic and your fish comfort level.

Keep the tubing as straight as possible to minimize restrictions that force the pump to work harder. Avoid sharp bends, which can cause vibrations and reduce overall efficiency. If you need to navigate around obstacles in your hardscape, use gentle curves rather than tight angles.

Fine-Tuning Flow and Achieving Silent Operation

Once everything is assembled, plug in the pump and observe how water moves through the system. Fine-tune the flow rate using the pump's built-in adjustment if available. The goal is a smooth, unbroken sheet of water rather than scattered droplets that spray outside the tank.

If you hear humming or vibration, check that the pump sits flat on the bottom and that the suction cups grip securely. Placing a small piece of foam padding under the pump absorbs vibrations that transfer through the glass. Keep the intake screen clear of debris, as a clogged intake forces the motor to strain and generates noise.

Test the system overnight before declaring it finished. Some vibration issues only become apparent after several hours of continuous operation when components warm up and settle. Making small adjustments now ensures a quiet, reliable waterfall that runs continuously without requiring constant attention.

Maintaining Your Aquarium Waterfall Long-Term

Routine maintenance keeps your waterfall running efficiently. Every few weeks, shut off the pump and inspect the intake screen and rotor housing for algae buildup or debris. Most submersible pumps allow tool-free disassembly, so you can rinse the components under warm water and reassemble them in minutes.

Check the tubing periodically for kinks or obstructions that might restrict flow. Algae can slim the inside of tubing over time, reducing efficiency even when the pump itself is clean. Flushing the line with a 10% vinegar solution followed by fresh water removes most buildup without damaging aquarium-safe materials.

Monitor water level in the tank, especially during summer months when evaporation accelerates. A waterfall loses more water to evaporation than a quiet filter output because the constant splashing and agitation increase surface area. Top off the tank regularly to maintain consistent water parameters and prevent the pump from running dry, which can damage the motor permanently.

Frequently Asked Questions

How high can a submersible pump lift water in an aquarium waterfall?

Most submersible pumps list a maximum head height, which is the highest point they can push water vertically. For the BaoZqua 580GPH model, the max lift reaches approximately 7.8 feet. In practice, flow decreases significantly near the top of that range, so plan your waterfall height within the lower two-thirds of the rated maximum for adequate cascade volume.

Do aquarium waterfalls increase humidity around the tank?

Yes, waterfalls add humidity through evaporation, particularly in rimless or open-top setups. This benefit helps maintain stable water parameters and supports humidity-loving species. However, if your tank sits in a climate-controlled room, the effect is usually negligible. Monitor water levels more frequently in heated rooms or during dry winters.

Can I use a fountain pump for both a waterfall and a filter return?

You can plumb a single pump to feed both applications, but most hobbyists prefer separate pumps to maintain independent flow control. Splitting flow between a filter return and a waterfall means adjusting one affects the other. Dedicated pumps give you precise control over cascade volume without compromising filtration performance.

How do I prevent my aquarium waterfall from overflowing the rim?

Ensure the spill point sits deep enough below the water surface to absorb the cascade without splashing over the rim. Positioning the output near the back or corner of the tank rather than directly over the center reduces spray. Running the pump at a moderate flow rate instead of maximum output also keeps splashing contained within the tank boundaries.
