How to Set Up an Aquarium Top Filter Box for Clear Water

Setting up an aquarium top filter box the right way makes the difference between water that sparkles and water that needs constant tweaking. Unlike submerged canister filters, these overhead systems expose media to air, supercharging biological filtration—but only if you stack and maintain them correctly. This guide covers chamber configuration, media ordering, noise reduction, and service routines that basic YouTube tutorials skip. By the end, you'll have a clear-water setup that actually stays clear.

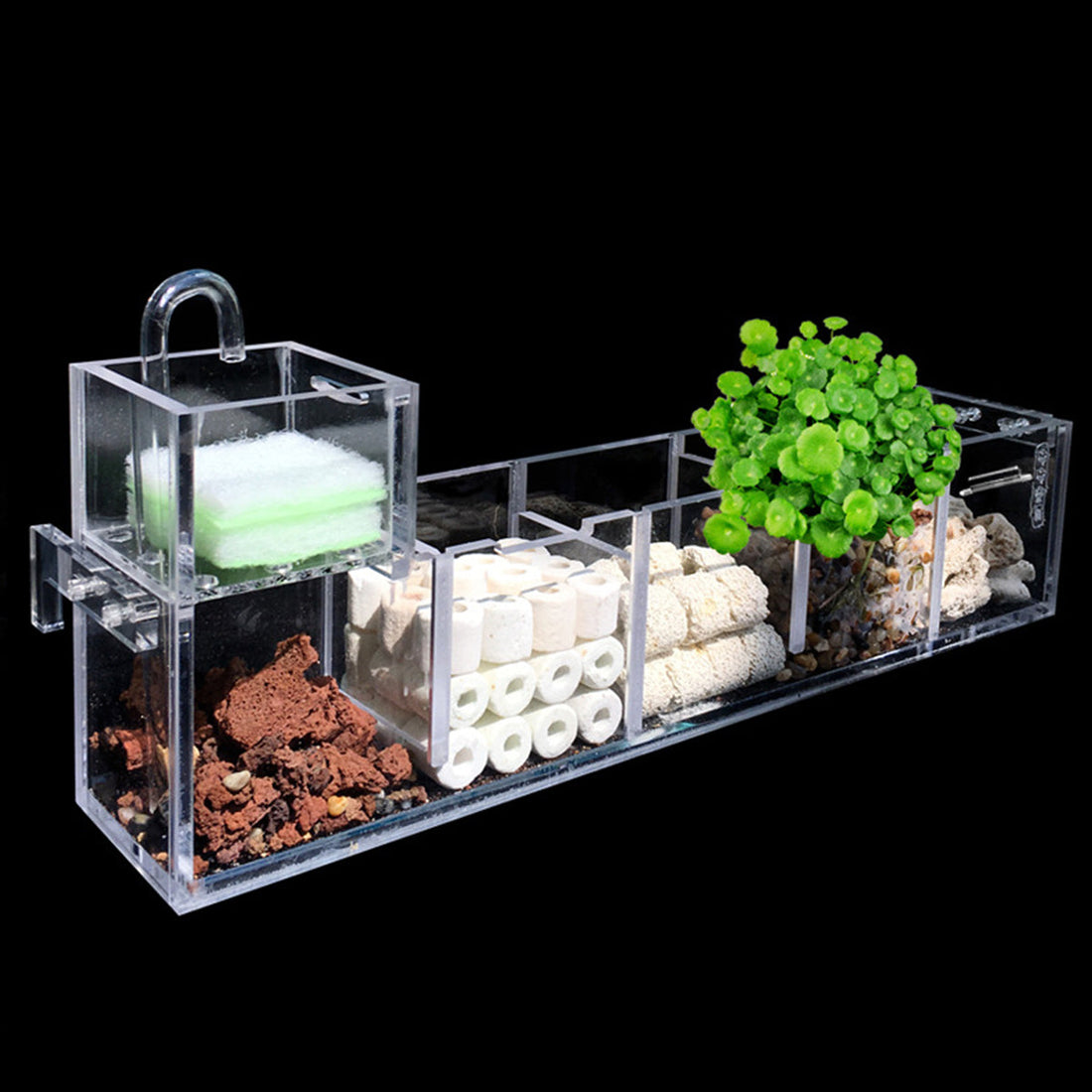

What Is an Aquarium Top Filter Box?

An aquarium top filter box—sometimes called an overhead or hanging filter—is an external filtration unit that sits above your tank waterline. Water gets pulled up from your tank by a submersible pump, routed through stacked media trays, and returned as a clean flow over the top of the tank. The defining advantage over fully submerged filters is exposure to air: your biological media gets maximum oxygenation, which fuels the beneficial bacteria that eat ammonia and nitrite.

Most designs come in modular configurations: 3-chamber basics, 5-chamber dry-wet setups, and upgraded 6-chamber systems with multiple stages. The clear acrylic bodies let you visually monitor media condition without dismantling anything. No pump is included—you connect your own submersible pump or canister return line, which gives you control over flow rate based on your tank size and bioload.

If you're running a freshwater community tank, a planted setup, or even a mild saltwater reef, an overhead filter handles the heavy lifting with less maintenance headache than some canister setups because tray access is straightforward and doesn't require reaching into your tank.

Choosing the Right Configuration for Your Tank

The chamber count isn't just about size—it dictates what your filter can handle mechanically, biologically, and chemically. A 3-chamber box works fine for small tanks under 30 gallons with light fish loads. Each chamber holds a dedicated media type, but you have limited room for customization.

Moving to a 5-chamber dry-wet option unlocks better biological capacity. The drip-through design exposes media to air between layers, dramatically increasing oxygen contact compared to submerged trays. If you keep cichlids, goldfish, or other moderate bioload species, this configuration pays off within weeks—you'll notice ammonia spikes flatten out faster during cycling.

The 6-chamber upgrade suits heavily stocked tanks or breeding setups where water clarity directly impacts fry survival. You get dedicated slots for mechanical pre-filtration, multiple biological stages, and chemical polishing—all running simultaneously without media contact between stages. Matching configuration to your tank volume and fish count prevents under-filtration, which is the most common cause of cloudy water complaints.

Optimal Media Stacking Order for Maximum Clarity

Media order inside your aquarium top filter box matters more than most hobbyists realize. Placing coarse mechanical media first acts as a pre-filter, trapping particulate waste before it clogs finer downstream stages. Floss or coarse sponge works well here—replace or rinse every two to four weeks depending on tank load.

Next comes biological media: ceramic rings, bio-balls, or lava rock. This is where your ammonia processing happens. Keep this layer submerged or lightly moistened in dry-wet configurations and never squeeze it under tap water—chlorine kills the bacteria colony. Rinse gently in old tank water during maintenance.

Chemical media goes last, closest to the return spout. Activated carbon removes medications, tannins, and dissolved organics that cause yellowing. Phosphate removers address algae-triggering nutrients. If you run carbon permanently, swap it every four to six weeks—exhausted carbon leaches absorbed waste back into the water.

A common mistake is putting carbon before biological media. By the time water reaches your bio media, the carbon has stripped helpful trace elements your bacteria need. Stack from coarse to fine, biological in the middle, and chemical at the end.

Installing Your Top Filter: Step-by-Step

Start by positioning the filter box above your tank—most hanging models rest on the rim or use bracket mounts. Make sure the intake tube reaches your submersible pump comfortably without kinking. If using a canister return line instead, connect it to the inlet port and adjust flow with a valve to prevent overwhelming the media trays.

Fill each chamber before starting flow. Dry chambers will cause prime issues and airlocks that disrupt water movement. Pour tank water directly into each tray in reverse order—chemical, biological, then mechanical—so you can verify media placement before closing up.

The BaoZqua overhead filter uses lift-off trays that make loading media straightforward. Load your chosen media into each tray, seat them in order, and verify the drip pathway isn't blocked before powering your pump.

Check the return spout positioning—aim it toward the back wall or use a spray bar attachment to distribute flow without creating surface turbulence that stresses long-finned fish. Initial startup should show some cloudiness from media debris; this clears within 24-48 hours as the system equilibrates.

Routine Maintenance Without Disrupting Your Cycle

The biggest maintenance mistake with an aquarium top filter is replacing all media at once and nuking your biological cycle. Never replace biological media unless it's disintegrating. Instead, rotate in fresh media gradually—swap 20-30% at a time over several water changes.

Mechanical media (floss, foam) gets the most abuse. Check it weekly in heavily stocked tanks; squeeze debris out under warm tank water, not tap water. Replace when it stops wringing clean or starts tearing. Chemical media replacement follows a simple calendar: every four to six weeks for standard activated carbon, less if you're removing medications or heavy tannins.

Clean the acrylic body every couple of months with only warm water and a soft cloth. Chemical cleaners leave residues that can harm fish. Inspect seals and connection points during cleaning—most leak issues stem from misseated gaskets or degraded tubing.

If your flow noticeably drops between maintenance cycles, check for media compaction in the lower trays. Over time, biological media expands slightly and can create a tight fit that restricts water passage. Thinning the bio media layer slightly solves this without losing significant colonizing surface area.

Troubleshooting Common Top Filter Problems

Weak flow after setup usually means the pump isn't primed or intake is partially blocked. Disconnect and re-prime the intake line, making sure no air bubbles are trapped in the tubing. If using a canister return, verify the connection isn't siphoning backward.

Bubbling or splashing sounds indicate air getting into the return line—a common issue when pump placement sits lower than the filter box. Elevating the pump slightly or adding a check valve prevents back-siphoning. The dripping sound from dry-wet configurations is normal; excessive splashing means water level inside the chambers is too high.

Cloudy water persisting beyond 48 hours suggests either new media debris or a bacterial bloom from excess nutrients. Increase mechanical filtration temporarily by adding floss layers, then reduce feeding for a few days to let the system stabilize. Persistent cloudiness after a week points to an underlying bioload issue rather than the filter itself.

Algae buildup on the return spout or chamber surfaces responds to light reduction—move the filter box away from direct tank lighting or reduce photoperiod. The acrylic material makes cleaning straightforward, but algae on the intake screen restricts flow gradually. Weekly inspection catches this before it impacts filtration efficiency.

Fine-Tuning Flow Rate for Tank-Specific Needs

Flow rate through your aquarium top filter box should turnover your tank volume roughly 4-6 times per hour for most freshwater setups. A 40-gallon tank needs 160-240 gallons per hour of effective flow through the media—not just pump-rated output, which accounts for head pressure and resistance.

Overly aggressive flow stresses fish with long fins and timid species. If you see plants getting shredded or fish fighting current, add a spray bar or aim the return spout toward glass to dissipate energy. Betta keepers routinely reduce flow to near-zero on filter outputs; a simple pre-filter sponge on the return tube dampens velocity without reducing overall turnover.

Under-powered flow causes waste buildup in trays and ammonia spikes. If you're running more fish than your filter capacity handles, add supplemental filtration rather than pushing the top filter harder. The limiting factor is often media volume, not pump strength—dense packing improves contact time but restricts volume.

Balancing flow and filtration efficiency comes down to observing your specific tank. Test water parameters weekly during the first month to confirm ammonia and nitrite stay at zero. Adjust media density and flow until you hit that sweet spot where water stays crystal clear with minimal maintenance intervention.

Frequently Asked Questions

How often should I clean the media in my aquarium top filter box?

Clean mechanical media (floss, sponges) every 2-4 weeks depending on bioload. Never replace biological media completely unless it's degrading—this destroys your beneficial bacteria colony. Rinse biological media in old tank water only. Chemical media like activated carbon needs replacement every 4-6 weeks for permanent use, or sooner after medication treatments.

Can I run a top filter box without a pump?

No—a pump is required to push water up into the hanging filter. The filter box itself is a passive media chamber system. You connect it to an existing submersible pump or canister filter return line. Choose a pump rated for your tank volume plus head height to maintain adequate flow through multiple media trays.

What is the difference between dry-wet and standard 3-chamber top filters?

A dry-wet 5-chamber system exposes biological media to air between dripping layers, maximizing oxygenation and beneficial bacteria growth. Standard 3-chamber filters keep all media submerged. Dry-wet configurations handle higher bioloads better and cycle faster but require slightly more attention to water level maintenance in the trays.

Why is my aquarium top filter box making noise?

Noise typically comes from three sources: air entrainment in the intake line (add a check valve), splashing in the chambers (adjust water level), or vibration transfer through the tank rim. Most issues resolve by repositioning the pump, ensuring chambers are filled properly, or adding a thin rubber washer between the filter and tank rim to dampen resonance.
