How to Set Up an Aquarium Wet Dry Top Filter for Crystal Clear Water

If you want water so clear you can read the fine print on your fish's scales, a wet dry top filter might be your best upgrade. Unlike standard submerged filters, the wet-dry design exposes beneficial bacteria to oxygen-rich air, slashing ammonia and nitrite faster than you thought possible. I've been running overhead drip filters on planted and community tanks for years, and the difference in water quality is obvious within the first week. Here's how to get it right from the start.

What Makes a Wet Dry Top Filter Different

Standard canister and hang-on-back filters keep all media submerged underwater. That works fine for mechanical filtration, but it creates a hidden problem: beneficial bacteria thrive when they have access to both water and oxygen. Wet dry top filters (also called overhead drip filters or aquarium drip filters) solve this by exposing the biological media above the waterline. Water drips through stacked trays, coating the media in oxygen-rich air before it returns to the tank.

The result is a biological filter that performs significantly better than submerged alternatives of similar size. The dry compartment houses your bio-balls or ceramic rings where aerobic bacteria colonize, breaking down ammonia and nitrite with efficiency submerged media simply can't match. Mechanical and chemical filtration still happens in separate trays, letting you customize the flow path to your tank's needs.

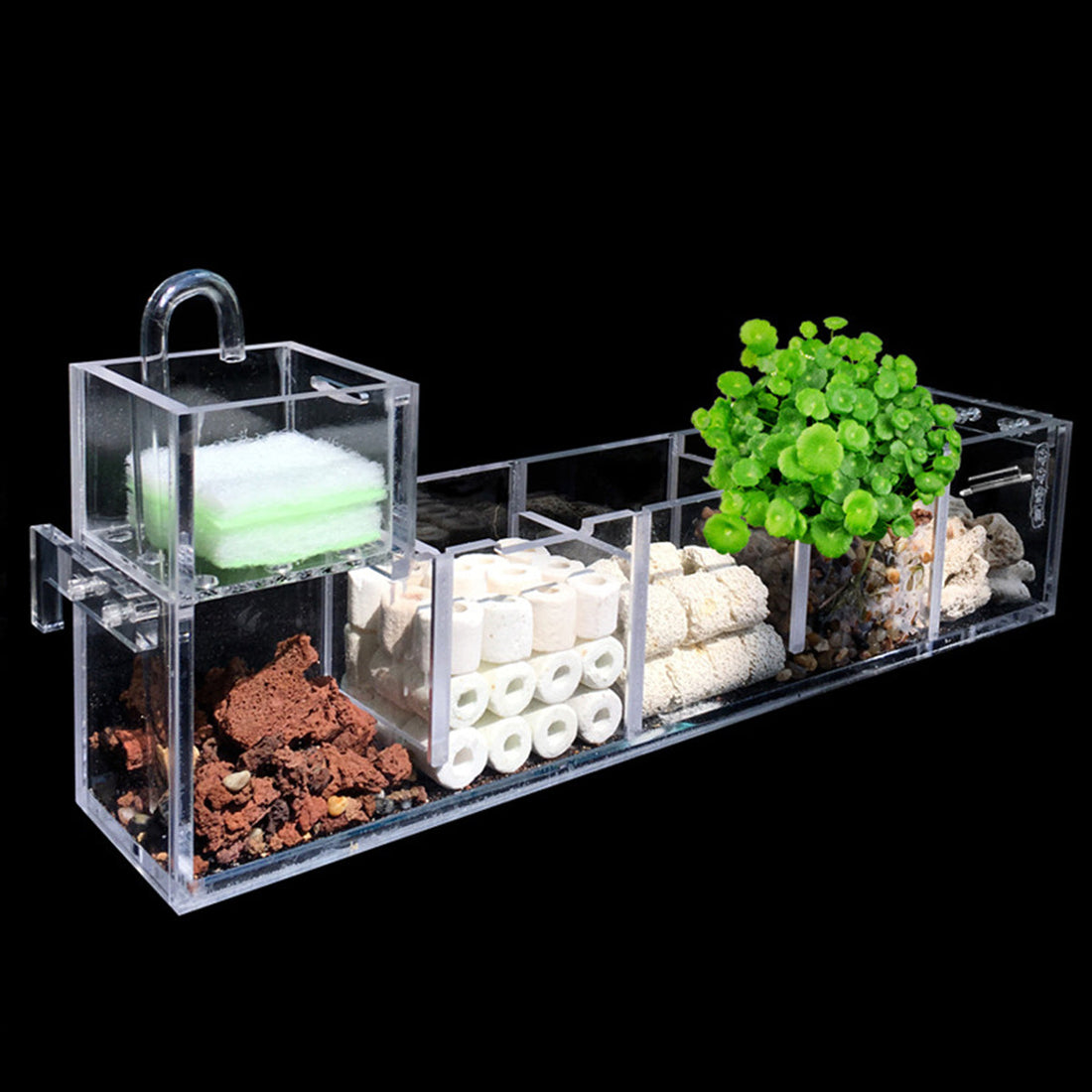

This design also keeps maintenance easier because you can access trays without reaching into your tank or disconnecting hoses. The clear acrylic body on modern top filters like the BaoZqua overhead filter means you spot a clogged tray before it becomes a flow problem.

The Science Behind Dry-Wet Separation

Beneficial bacteria need two things to process ammonia efficiently: a food source and constant oxygen. In fully submerged filters, oxygen levels depend on water movement and diffusion, which can fluctuate. In a wet dry setup, bio-media sits above the water line in the dry chamber. Water reaches it by dripping through holes or overflows, coating every surface before falling back into the tank.

This constant air exposure creates ideal conditions for nitrifying bacteria to colonize and work at peak efficiency. Studies on trickle towers and wet dry sumps consistently show faster ammonia conversion rates compared to submerged systems. The oxygen-rich environment also supports a more diverse bacterial community, which helps process organic waste that simpler filters miss.

The wet-dry principle isn't just for large sumps. Hanging top filters with multiple chambers apply the same drip-through logic in a compact format. The 5-box and 6-chamber configurations let you run true dry-wet separation with multiple media types in sequence, maximizing both biological and mechanical filtration performance.

Choosing the Right Media for Each Tray

Most wet dry top filters come with modular trays you can arrange based on your tank's bioload. A standard setup for a community tank follows this pattern: mechanical filtration first, biological filtration second, chemical filtration third if needed. The order matters because you want to trap solid waste before water reaches your beneficial bacteria.

For the first tray, use coarse foam or filter floss to catch particles. This is where waste gets physically removed, and cleaning this tray regularly keeps everything else working efficiently. The second tray handles fine particles with finer foam or activated carbon if you're removing medications or odors. Your biological media—ceramic rings, bio-balls, or lava rock—goes in the dry chamber where oxygen exposure does its work.

The media quantity matters more than brand names. Calculate roughly 1 cubic inch of bio-media per gallon of tank volume for moderate bioload. Double it for heavily planted tanks with CO2 injection or tanks with multiple large fish. The BaoZqua filter's 3, 5, and 6-chamber options let you scale media volume to your specific tank size without wasting space or flow.

Step-by-Step Installation

Setting up a wet dry top filter takes about 30 minutes if you plan ahead. First, position the filter hang on your tank rim and ensure the return spout points toward the water surface for good surface agitation. Most top filters require a submersible pump or connection to your canister return line—check your filter's inlet size and match it to your pump's output. A pump that moves your tank volume 3-4 times per hour works well for most community tanks.

Fill trays in order: coarse foam in the first tray, finer foam or carbon in the middle tray, bio-media in the dry chamber. Pre-rinse all media in dechlorinated water to remove dust. Place the trays back in the filter body, ensuring no tray is blocking the overflow holes that let water reach the dry chamber. Connect your pump tubing to the inlet, check that all seals are tight, and fill the filter body with water manually to prime it before powering on.

Once running, watch for airlocks in the drip chambers. Tilt the filter slightly backward if needed to let trapped air escape through the outlet. The first 2-3 days you'll see cloudy water as fine particles work through the system—this is normal and resolves once the mechanical stage settles.

Routine Maintenance Schedule

Wet dry top filters reward consistent maintenance with years of reliable service. Every week, check flow rate at the return spout. A noticeable drop means the first mechanical tray needs cleaning. Rinse that tray in old tank water (never tap water—it kills your beneficial bacteria) and squeeze gently until runoff runs clear. Reinstall immediately.

Monthly, inspect your dry chamber for debris buildup on bio-media. If media looks compacted or has a brownish sludge layer, rinse gently with dechlorinated water. You don't need to sterilize the media—just restore airflow between pieces. Replace carbon or other chemical media every 4-6 weeks if you're using it, as it exhausts and can start leaching back into water.

The acrylic housing makes monitoring easy. You can see when trays need attention without disassembling anything. This visibility is a major advantage over opaque canister filters where problems stay hidden until flow drops or nitrites spike.

Common Mistakes and How to Avoid Them

First-timers often overfill the dry chamber, packing bio-media so tightly that airflow gets blocked. Bacteria need void space to breathe. Leave at least 25% empty volume when loading bio-balls or ceramic rings. The media should sit loosely, not compressed.

Another frequent error: running the pump dry. If water level in the filter body drops below the inlet, your pump can lose prime or overheat. Always pre-fill the filter body manually and check water levels during weekly maintenance.

Skipping mechanical pre-filtration overloads the biological stage. Don't skip the first foam tray thinking you can rely on bio-media alone. Solid waste sitting in your dry chamber creates anaerobic pockets that produce hydrogen sulfide—a toxic gas that can harm fish and smell terrible.

Finally, don't rush the cycling process. Even with a superior wet dry design, you need 4-6 weeks to establish bacterial colonies before adding fish. Test ammonia and nitrite weekly until you see readings of zero before fully stocking your tank.

When a Wet Dry Top Filter Is the Right Choice

These filters shine in tanks with moderate to high bioload: African cichlids, goldfish, large plecos, and breeding setups all benefit from the superior biological capacity. The exposed drip tray design handles protein skimming and waste processing that would bog down a standard canister.

They're also ideal for tanks where you want to maximize filtration without adding bulky equipment inside the aquarium. A 5-box overhead filter with proper media can outperform a canister two sizes larger, and it takes up zero tank space. Marine keepers appreciate the surface agitation and oxygenation for reef tanks, while freshwater planted tank owners value the consistent water movement and easy media swaps.

If you're running a small tank under 20 gallons with minimal fish, a simple sponge filter might suffice. But once you cross into community tanks with six or more fish, or any tank with messy feeders, the wet dry top filter delivers filtration performance that justifies every dollar and the modest setup time required.

Troubleshooting Your Wet Dry Filter

If you notice consistent high ammonia despite a running filter, check for clogged media in the dry chamber. Bio-balls compact over time, reducing surface area. Lift them out, inspect for dark sludge, and rinse in dechlorinated water. Aerate the tray afterward to restore airflow.

Bubbling sounds from the return spout usually indicate air getting into the pump line. Check connections for loose fittings or cracks in intake tubing. Sealing the intake joint with aquarium-safe silicone if needed resolves this without replacing equipment.

Cloudy water persisting past day five suggests either excessive bio-media shedding (new ceramic rings sometimes do this) or a cycling issue. Run a filter floss pad in the first tray for a few days to catch particles, then test your ammonia and nitrite levels to confirm the cycle is complete.

Slow flow that isn't fixed by tray cleaning often means pump output is mismatched to your media load. Verify your pump moves enough volume for your configuration, and consider upgrading if you've added more media than the original setup called for.

Frequently Asked Questions

How does a wet dry top filter differ from a standard canister filter?

Wet dry top filters expose biological media to air while water drips through trays, giving beneficial bacteria superior oxygen access compared to submerged canister media. This accelerates ammonia and nitrite processing. Canister filters keep everything underwater, which works but processes slower at equivalent volumes.

Do I need a separate pump for a top filter?

Most wet dry top filters require an external submersible pump or connection to your canister return line. The filter body itself doesn't include a pump. Match pump output to your tank volume—aim for 3-4x turnover per hour—and ensure the inlet fitting matches your pump's outlet diameter.

Can I use a wet dry top filter in a saltwater reef tank?

Yes. The high oxygen exposure and surface agitation benefits marine tanks just as much as freshwater. The clear acrylic housing handles salt spray well, and the modular media trays let you customize for mechanical filtration before biological stages, which helps with protein skimming.

How often should I clean the dry chamber media?

Clean bio-media only when flow visibly drops or you detect a slimy coating. Rinsing too frequently kills beneficial bacteria. When cleaning, use dechlorinated water at tank temperature to avoid shocking colonies. Most hobbyists find monthly inspection sufficient for community tanks.

What's the cycling time for a new wet dry filter?

Plan 4-6 weeks for the nitrogen cycle to establish fully. Test ammonia and nitrite weekly until you get consistent zero readings with a full ammonia dose converting within 24 hours. The superior oxygenation in wet dry designs sometimes speeds this up compared to submerged filters, but patience prevents fish loss.
