How to Set Up an Overhead Filter Box Aquarium for Clearer Water

If you're fighting murky water despite frequent water changes, your filter setup might be the culprit. Overhead filter box aquarium systems drop media above the waterline, exposing beneficial bacteria to air instead of submerging them. That simple reorientation turbocharges biological filtration and cuts maintenance headaches for freshwater and marine tanks alike. This guide walks through selecting, installing, and maintaining a hanging top filter so you get the clearest water of your hobby life—no fluff, just what works.

Why Overhead Filter Box Designs Outperform Submerged Media

Traditional canister and HOB filters keep all media underwater. That's fine for mechanical trapping, but biology thrives where oxygen is richest—above the waterline. An overhead filter box aquarium setup drops water through open trays, exposing nitrifying bacteria to ambient air. More oxygen means bigger, more active bacterial colonies. Those colonies process ammonia and nitrite far more efficiently than submerged media, which translates to steadier water parameters and less frequent water changes.

The wet-dry principle also creates natural surface agitation as water returns to the tank. That gentle ripple drives gas exchange at the surface, pulling in fresh oxygen while off-gassing CO2. The result is a self-oxygenating system that supports both your filter bacteria and your fish simultaneously. If you've been battling parameter swings or chronic cloudiness, switching to a drip-through hanging filter often resolves it within a week or two.

Picking the Right Overhead Filter Box for Your Tank

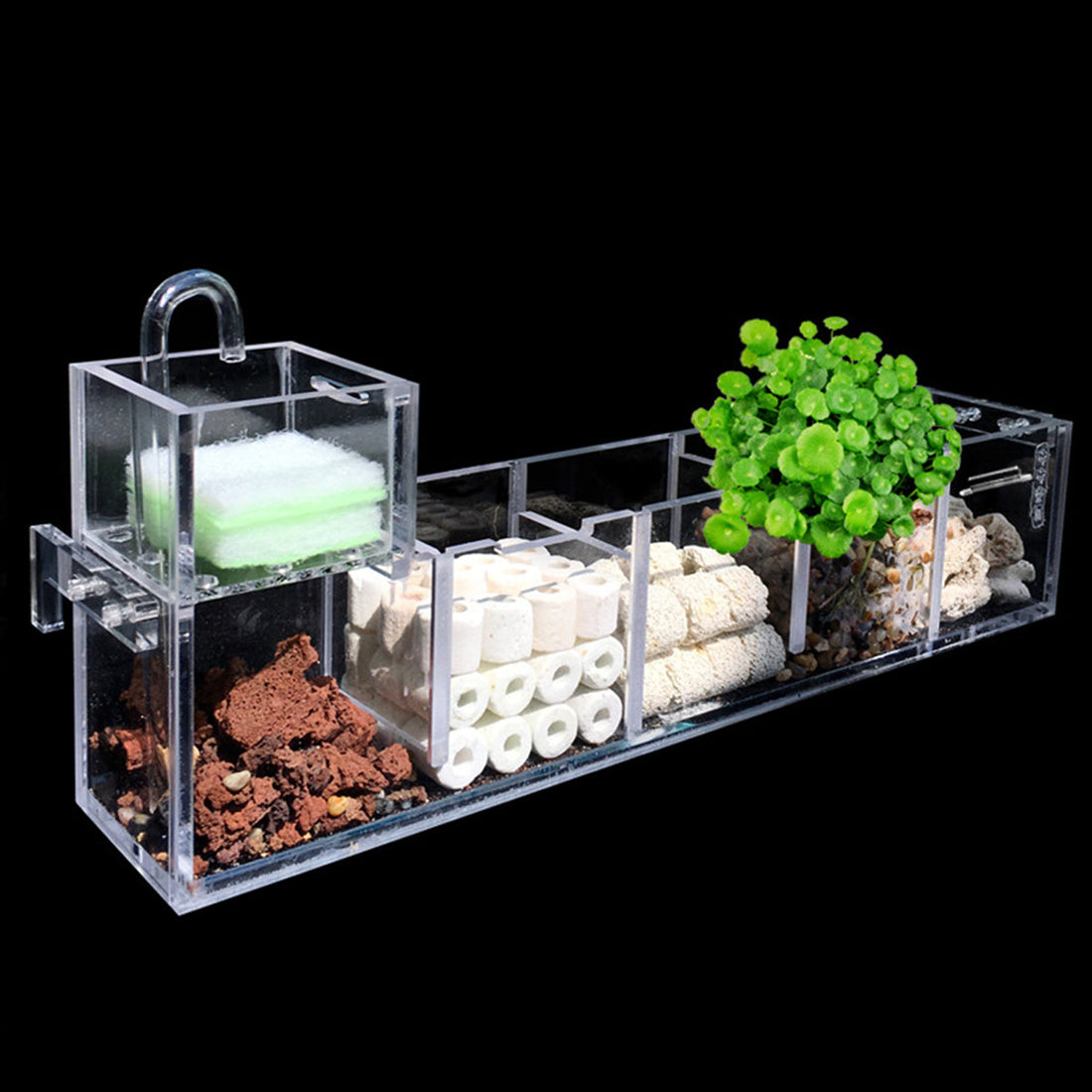

Not all hanging aquarium filters are equal. Acrylic overhead filter units are lighter and clearer than ABS plastic versions, letting you spot clogged floss or spent carbon without dismantling anything. BaoZqua's acrylic overhead filter system comes in 3-box, 5-box wet-dry, and 6-chamber configurations—giving you room to grow from a modest community tank into a densely stocked or reef-capable setup.

Match chamber count to bioload. A 3-box works fine for lightly planted tanks with small schools. The 5-box dry-wet option is the sweet spot for most community tanks, adding the drip-through stack that maximizes oxygen exposure. A 6-chamber unit suits high-bioload predator tanks or reef sumps where you want separate mechanical, biological, and chemical stages. Sizing also matters: oversized filters waste media and flow; undersized filters cause ammonia spikes. Aim for four to six times your tank volume in hourly turnover through the unit.

Media Selection and Layering for Maximum Clarity

Media arrangement inside each tray drives your results more than the filter itself. Mechanical filtration goes first—floss or sponge foam traps particulates before they reach delicate biological surfaces. Put this stage upstream so debris doesn't coat your bio-media and starve your bacteria of surface area.

Biological media comes next. Ceramic rings, bio-balls, or lava rock give nitrifying bacteria maximum surface area. In a wet-dry config, these sit above the waterline where air exposure keeps colony productivity high. Chemical media—activated carbon or phosphate removers—goes last, polishing water as it exits. Replace mechanical media monthly, biological media every three to six months, and carbon every four to six weeks. Skipping this schedule lets trapped waste decompose and spike your parameters.

Installing Your Hanging Top Filter Step by Step

First, position your overflow box or durso drain on the tank rim or back wall. Set it so the waterline sits two to three inches below the rim—high enough to prevent overflow if the return pump hiccups, low enough to keep water flowing smoothly. Some setups use a hang-on-back weir; others require drilling. If you want drill-free installation, position the overflow box over the rim and connect your submersible pump tubing directly.

Connect your pump to the filter inlet. Use rigid or reinforced tubing—no kinks, no soft collapse under vacuum. Route the return line to the filter's top inlet, then position the filter itself on the tank rim using the built-in hanging bracket. Finally, aim the outlet spout toward a tank wall or decor to break the return jet and add gentle surface movement. Seal any connections with silicone or clamp bands and run the system dry for five minutes before filling to catch leaks.

Maintenance Schedule That Actually Works

The biggest mistake hobbyists make with external filter boxes is neglecting media replacement until water quality crashes. A simple schedule prevents that. Every two weeks, pull and rinse the mechanical stage in old tank water—never tap water, which kills your beneficial bacteria. Every four to six weeks, swap carbon or resin if you're running it. Every three to six months, replace or deep-clean biological media, adding a few new pieces to reseed the colony.

Quarterly, remove each tray, inspect for algae growth or compaction, and reset your media layers. Check the pump output while you're at it—impeller wear reduces flow silently and starves your bio-media of fresh water. Keeping flow consistent prevents dead spots where detritus accumulates. If your tank runs warm in summer, increase flow slightly to boost oxygenation. Consistent maintenance keeps your wet-dry system performing at its peak year-round.

Troubleshooting Common Overhead Filter Issues

Low flow after startup usually means airlocks in the inlet line. Disconnect, refill the tubing with water, and reconnect while holding the intake below water level. If flow drops over weeks, check the mechanical stage first—floss compacts under flow and chokes the system faster than you expect. Replace or rinse it and flow should restore immediately.

Noisy return spout means the water jet is hitting a hard surface directly. Angle the outlet toward open water or aDecoration to diffuse the stream. Cloudy water in the first month points to a bacterial bloom—normal during cycling. Cut feeding by half, test ammonia and nitrite daily, and let the biology establish. If cloudiness persists after cycling, your biological media may be insufficient for the bioload. Add more bio-media trays or upgrade to a unit with more chamber space.

Pairing Your Filter With the Right Tank Setup

A filter is only part of a clear-water system. Water testing tells you if your nitrogen cycle is stable—aim for zero ammonia, zero nitrite, and nitrates under 20-40 ppm depending on plant load. Live plants absorb nitrate and reduce filter burden dramatically, so a heavily planted tank can run a modest overhead filter effectively.

Stocking density drives filter demand. One inch of adult fish per gallon is a rough starting point, but active swimmers and messy eaters need more filtration per volume than sedate species. Substrate type and decor matter too—sand traps waste but denies it to the filter, while bare-bottom tanks concentrate waste for easy removal. Match your filter capacity and media configuration to your tank's specific bioload, not just tank volume.

Frequently Asked Questions

How does a wet-dry overhead filter improve water quality compared to a standard canister filter?

Wet-dry overhead filters expose biological media to air rather than submerging it, dramatically boosting oxygen availability for nitrifying bacteria. Those bacteria process ammonia and nitrite faster and more completely than submerged canister media. The constant air exposure also keeps colonies healthier during brief停电 or flow interruptions, making your tank more resilient to parameter swings.

What size pump do I need for an overhead filter box aquarium setup?

Choose a pump that delivers four to six times your tank volume per hour. A 29-gallon tank needs 120-180 GPH; a 55-gallon needs 220-330 GPH. If you're running multiple media chambers or a 6-box configuration, bump flow toward the higher end to ensure even distribution. Avoid oversized pumps—they create excessive turbulence that stresses fish and can blow media out of trays.

How often should I clean or replace filter media in an overhead hanging filter?

Rinse mechanical media every two weeks in old tank water. Replace it monthly or when it no longer traps particles effectively. Biological media lasts three to six months before compaction reduces surface area. Chemical media like carbon needs replacement every four to six weeks. Following this schedule prevents trapped waste from decomposing and maintains consistent water clarity.

Can an overhead filter box work for both freshwater and marine aquariums?

Yes. The media configuration adjusts to your tank type. Freshwater setups typically emphasize mechanical and biological stages; marine setups often add chemical media for organic removal and phosphate control. The wet-dry design itself is equally effective in freshwater and saltwater, and the low-noise return spout works without disrupting sensitive coral placement.
