Overhead Aquarium Filter Box: Setup & Maintenance Guide

If you have ever wrestled with a bulky canister filter under your stand or wondered whether your hang-on-back is doing enough, an overhead aquarium filter box might be exactly the upgrade your tank deserves. These acrylic top filters hang on the rim of your tank and run water through customizable media chambers before returning it — no bulky housing under your cabinet, no suction cups failing on day two. In this guide I am going to walk you through exactly how they work, how to set one up properly, and what makes the difference between a filter that merely circulates water and one that genuinely polishes it.

What Is an Overhead Aquarium Filter Box?

An overhead aquarium filter box is an external filtration unit that mounts on the rim of your tank rather than sitting inside the water or hiding under your cabinet. Water gets pulled up from your tank through tubing, pushed through a series of media chambers, and returned via a spout at the top. The whole thing stays visible — and that visibility is actually a feature, not a drawback.

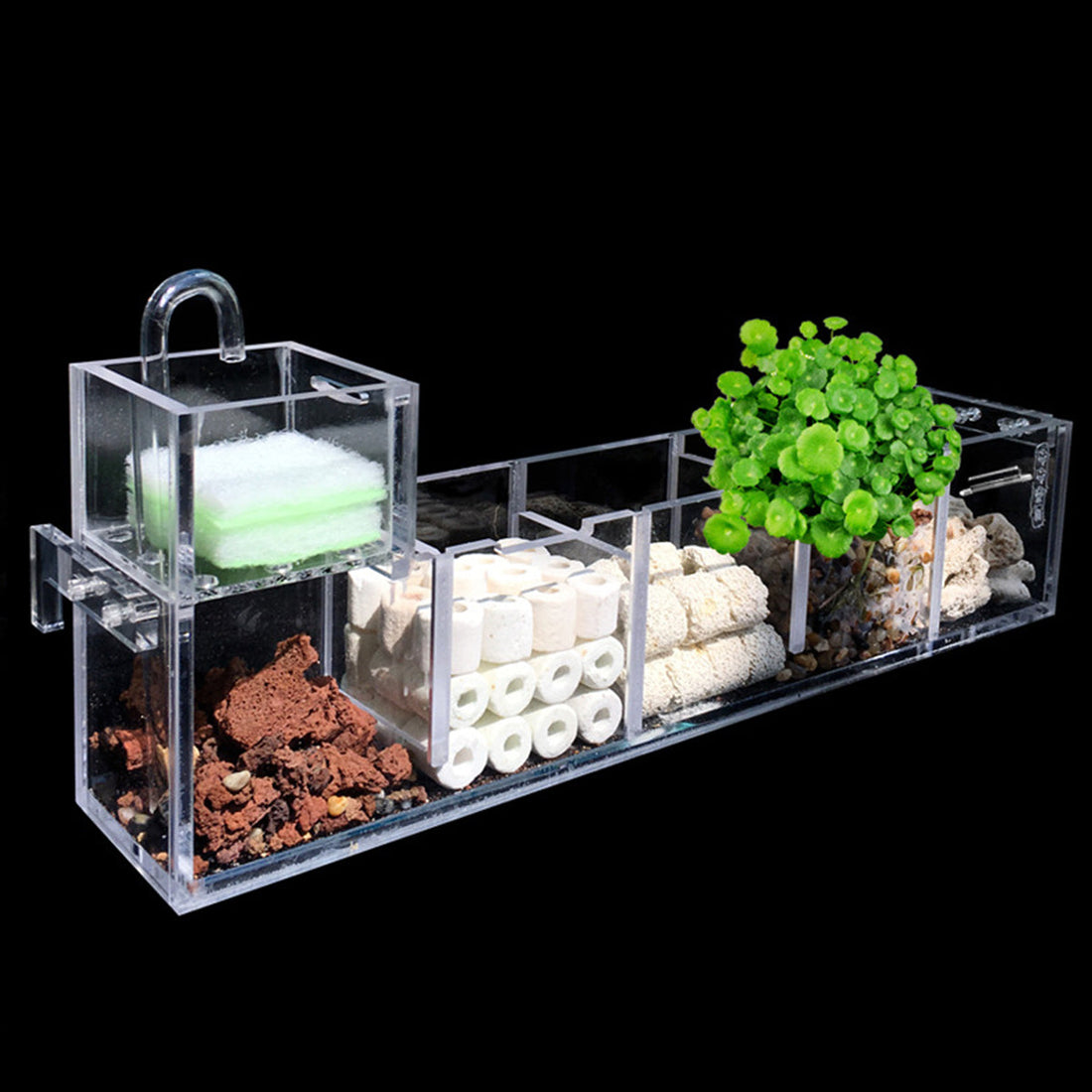

The most common versions are made from clear acrylic, which lets you see exactly when a chamber is starting to clog without pulling anything apart. You connect the inlet to a submersible pump or the return line of an existing canister, and you adjust flow by selecting a pump or setting a valve that matches your tank volume.

These units sit above the waterline, which means you can service them without reaching into your tank or shutting down your filter. For hobbyists with smaller setups, nano tanks, or anyone who wants modular media control without a full sump setup, an overhead filter box fills a gap that neither hang-on-back nor canister filters always cover cleanly.

BaoZqua offers an acrylic overhead filter box with configurable 3-box, 5-box (wet-dry), and 6-chamber options so you can scale filtration capacity to your bioload rather than buying a one-size-fits-all unit.

Wet-Dry Separation: Why It Matters for Your Water

Wet-dry separation is the reason many hobbyists choose a multi-chamber overhead filter over a standard submerged filter. In a fully submerged filter, all your media sits underwater. Biological bacteria do their job, but oxygen levels in the media are limited to what dissolves from the water column — and that can cap bacterial colony size.

A wet-dry configuration — most easily realized in a 5-box overhead system — stacks the media so water drips through each chamber before dropping into a water level below. This drip-through action pulls fresh oxygen across every surface the water touches. More oxygen means larger, more active bacterial colonies, and that translates directly to better ammonia and nitrite processing.

In practical terms, a wet-dry overhead aquarium filter box can handle higher bioloads than a comparable submerged system because the bacteria are working in more oxygen-rich conditions. If you are running a moderately stocked community tank or a tank with messier fish like cichlids or goldfish, that extra biological capacity can keep your water clearer with fewer water changes than you would otherwise need.

The trade-off is that a wet-dry setup evaporates more water and requires a bit more attention to keep flow rates consistent, but most hobbyists find the water quality gains worth the small additional maintenance.

Choosing the Right Size and Chamber Count

Overhead filter boxes come in two main sizes that usually correspond to tank volume — small (up to about 40 gallons) and medium (up to 75 gallons or so) — but chamber count is where the real customization happens.

A 3-box acrylic overhead filter gives you three chambers for stacking media. That works well for lightly stocked tanks where you want mechanical, chemical, and biological separation but do not need maximum water processing power. It is also the simplest setup for beginners since there is less tubing and fewer chambers to monitor.

A 5-box wet-dry filter aquarium setup adds two additional chambers that are designed for the drip-through stacked configuration. This is the sweet spot for most community tanks with moderate to heavy stocking. You get enough space for a thick biological section and separate mechanical and chemical chambers.

A 6-chamber version gives you the most flexibility — essentially a mini-sump inside the box — for heavily stocked tanks, breeding setups, or tanks running sensitive livestock. The more chambers you have, the more media you can load, and the more tuned your filtration can be to your specific bioload.

Match the chamber count to your bioload, not to the size of the tank. A 30-gallon tank with 15 cardinal tetras needs less filtration volume than a 30-gallon tank with four fancy goldfish, and the latter may benefit from going up a chamber tier.

Setting Up Your Overhead Box Filter Step by Step

Setting up an overhead filter box is straightforward, but getting the flow right and the seals tight from the start saves you headaches later. Here is how I approach it.

First, decide on your inlet source. You can feed the overhead box from a separate submersible pump placed inside the tank, or you can tee off the return line from an existing canister filter. The pump route gives you full control over flow independently of your canister. The tee-off route simplifies your equipment footprint but means the overhead box shares whatever flow your canister is pushing.

Mount the unit on your tank rim — most acrylic boxes have a hanging lip that rests on the glass. Make sure the lip is seated evenly so the unit does not tip when full of water and media. Connect your inlet tubing, prime the line, and check for leaks at every joint before you load any media.

Load your media from bottom to top in the direction of water flow: mechanical first (floss or sponge to catch debris), biological next (ceramic rings or bio-balls for bacteria), and chemical last if you are using carbon or resin. Each chamber should be filled but not packed so tight that water cannot pass through.

Point the return spout toward a wall or the back of the tank to create gentle surface agitation rather than a strong jet, which stresses fish and disrupts plants. Adjust your flow rate — too fast and you do not give water time to contact the media; too slow and debris builds up in the chambers.

Best Filter Media for Overhead Systems

The media you load into your overhead aquarium filter box matters more than the box itself. A well-configured unit with the wrong media will not perform as well as a basic unit loaded correctly. Here is what I run in my own overhead setups.

For mechanical filtration I use coarse aquarium floss in the first chamber. It traps particulate waste before it reaches the biological media, which keeps your bio-media cleaner for longer. Swap it out every one to two weeks depending on tank load, and do not reuse it — just replace it.

Biological media is where your ammonia processing lives. Ceramic rings, bio-balls, or porous lava rock all work well. The key metric is surface area per volume. I prefer ceramic rings because they are dense and have microscopic pores where bacteria colonize, but bio-balls are a solid budget option that still provides good surface area. Do not wash biological media with chlorinated tap water — use old tank water or dechlorinated water to preserve the bacterial colony.

Chemical media goes in the last chamber. Activated carbon is the most common choice for removing medications, tannins, and dissolved organics that cause yellowing. If you run a planted tank, you may want to skip chemical filtration entirely since carbon can strip some fertilizers. Purigen or similar resin-based products are another option for hobbyists who want to control dissolved organic compounds without the pH effects of carbon.

One tip that many guides skip: stagger your media granularity within each chamber. Put a layer of coarse material on the bottom and finer material on top so debris gets trapped at multiple levels rather than clogging the top layer immediately.

Maintaining Your Overhead Filter for Peak Performance

The biggest advantage of an overhead box filter over a canister is access. When your floss is dirty or your chambers need rinsing, you lift the lid, pull the tray, and service it — no disconnection, no mess, no reaching into the tank.

I service my mechanical chamber (floss or sponge) every one to two weeks. When it looks discolored or debris is visible, I pull it and replace it. This is the single most impactful maintenance task for keeping water clear because it prevents particulate from breaking down into dissolved organics.

Biological media gets a light rinse only when flow noticeably drops — typically every four to six weeks for a moderately stocked tank. Use old tank water, never tap water, and never scrub it hard. You want to remove excess debris without destroying the bacterial colony. If a chamber starts smelling sour or flow drops significantly despite rinsing, check for channeling (water finding a path around the media rather than flowing through it evenly).

Chemical media gets replaced according to the product instructions — usually every three to four weeks for activated carbon, or per the manufacturer's guidance for resin products. After medication treatment, carbon becomes saturated quickly, so replace it immediately after the treatment course ends.

Check your inlet tubing and seals monthly. Acrylic units can develop small leaks at joints over time, especially if you run them continuously for months. Reseat any loose fittings and replace tubing that shows cracking or hardening.

Troubleshooting Common Overhead Filter Problems

Even well-configured overhead filter boxes can develop issues. Here are the ones I run into most often and how to fix them.

Low flow after startup is usually an airlock in the inlet line. Disconnect the inlet, fill it with water, and reconnect while holding the end submerged. This primes the line and eliminates the bubble that was blocking flow.

If flow drops over time, debris is clogging your mechanical chamber. Pull the floss or sponge and replace it. If you replaced it recently and flow is still dropping, check your inlet strainer or impeller — submersible pumps that feed the system can get their impellers clogged with algae or mulm, especially in warmer tanks.

Cloudy water right after setup is normal and usually resolves within a week as the biological filter cycles. If it persists beyond two weeks, check your bioload — you may be overfeeding or underfeeding your bacteria, which sounds counterintuitive but both can cause imbalances. Increase aeration and hold off on feeding for two days to let the biological filter catch up.

Bacteria smell from the filter itself is usually a sign of anaerobic pockets forming in a stagnant chamber. Shake each tray gently and increase flow through that chamber by adjusting your inlet baffle or adding a small powerhead to circulate water within the chamber. Persistent rotten-egg smell can indicate a serious anaerobic issue — break down the whole unit, clean all media with dechlorinated water, and rebuild with fresh media.

Sputtering or uneven return spout flow typically means the outlet is clogged or the return line has a partial blockage. Pull the spout, rinse it under warm water, and check the return line for debris or kinks.

Frequently Asked Questions

How does an overhead aquarium filter box compare to a canister filter?

An overhead filter box sits on your tank rim and lets you see and service media without disconnecting lines, while a canister filter hides under your cabinet and processes larger water volumes per cycle. Overhead boxes excel at wet-dry biological filtration in a compact footprint, but canisters typically handle higher flow rates and larger media volumes. For nano to mid-sized community tanks, an overhead box can match or exceed canister performance on biological filtration while taking up zero cabinet space.

Can I use an overhead filter box on a planted tank?

Yes, and many planted tank hobbyists prefer them because you can customize media to avoid stripping fertilizers. Skip the chemical (carbon) chamber if you want to keep dissolved nutrients available for plants, and load biological and mechanical sections only. The gentle surface agitation from the return spout also supports gas exchange without disturbing plant leaves the way powerheads sometimes do.

What flow rate do I need for an overhead aquarium filter box?

Aim for 4-6x your tank volume per hour for the combined pump output feeding the overhead box. A 40-gallon tank needs roughly 160-240 gallons per hour total flow. Since overhead boxes typically sit upstream of your main circulation pump, you route the pump output through the filter and return it to the tank. Match your submersible pump or canister tee-off to deliver within that range so water spends enough time in the media chambers to be processed effectively.

How often should I clean the media chambers in an overhead filter?

Clean mechanical media every 1-2 weeks depending on tank bioload, rinse biological media every 4-6 weeks with old tank water only, and replace chemical media every 3-4 weeks or after medication treatment. Monthly visual checks of all chambers and tubing should be part of your routine — catching a clogged chamber early keeps your biological filtration stable.
