Overhead Aquarium Filter Setup: Your Complete Trickle Filter Guide

If you've been wrestling with murky tank water or wondering whether an overhead aquarium filter setup could finally solve your filtration headaches, you're in the right place. Most generic filter guides skip the details that actually matter when you're mounting a trickle filter above your tank. This guide walks through every step—from choosing the right pump to stacking your media correctly—so you can build a system that keeps your water crystal-clear and your fish genuinely thriving.

Why Hobbyists Choose Overhead Aquarium Filters

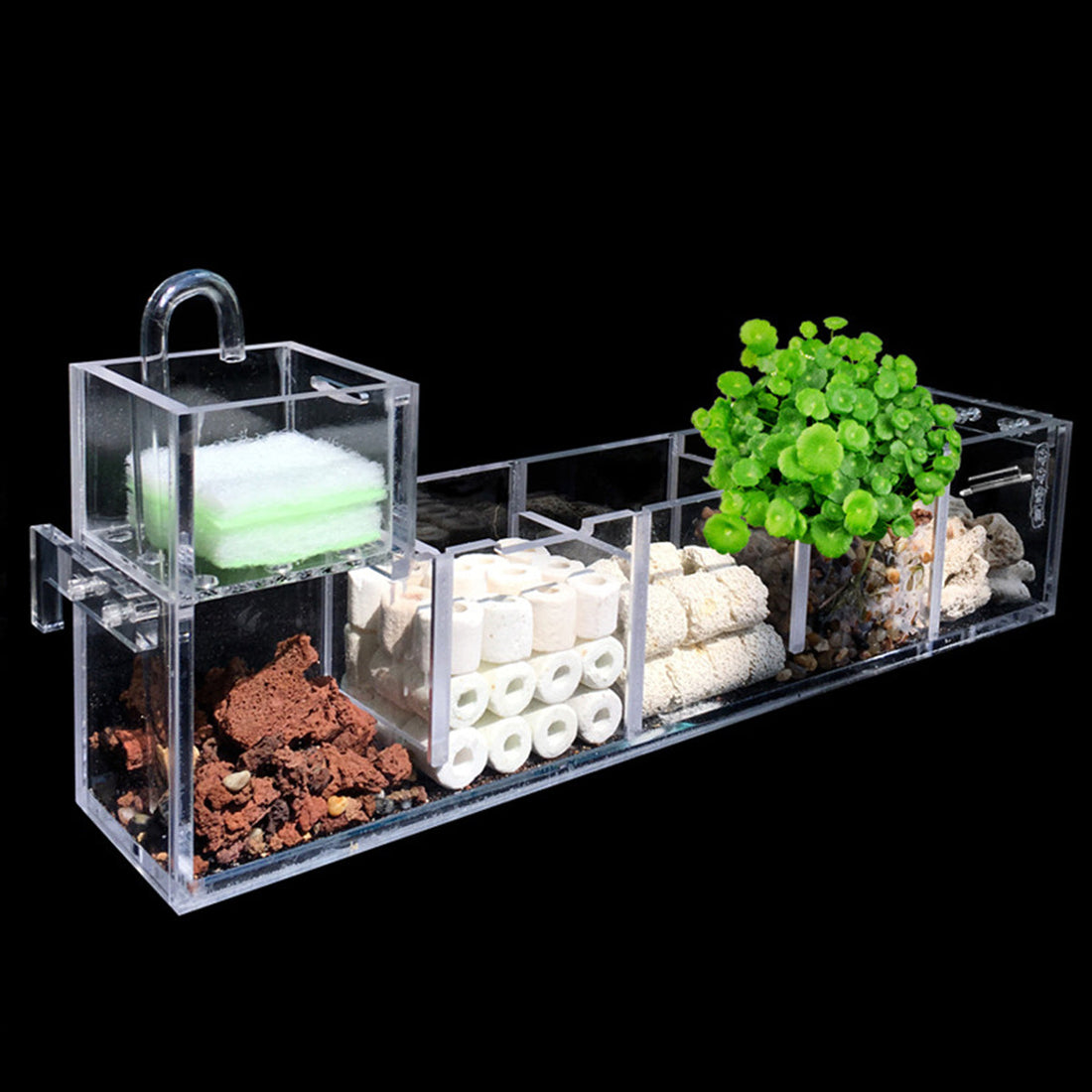

Overhead filters—also called trickle or hanging filters—sit above your tank and cascade water back down through media before returning it to the aquarium. This design offers real advantages that canister filters simply can't match in certain setups.

The primary benefit is superior oxygenation. When water trickles through the media and falls back into the tank, it picks up oxygen along the way. This supports beneficial bacteria far better than fully submerged media in a canister. Wet/dry separation takes this further by exposing beneficial bacteria to air, dramatically increasing their processing capacity for ammonia and nitrite.

Maintenance becomes noticeably simpler too. Since the filter hangs outside the tank, you access media trays without reaching into your aquarium. This means less disruption to your fish and faster cleaning sessions. For breeders and show tank keepers, this accessibility alone makes overhead filters worth considering.

Clear acrylic overhead filters let you spot potential clogs before they become problems. You see water flow problems at a glance rather than discovering reduced filtration during your weekly water change.

What You Need Before Starting Your Overhead Filter Setup

Before mounting your overhead filter, gather the right components. Skipping this step leads to flow problems that haunt you for months.

Pump sizing matters more than most guides admit. Calculate your tank volume in gallons, then target a flow rate of 4-6x your tank volume per hour for most freshwater setups. A 20-gallon tank needs 80-120 GPH through the filter. If you're running dense biological media or plan to push higher flow for heavy bioloads, lean toward the higher end.

You'll need a submersible pump that can handle your target flow against the head height—the vertical distance from your pump to the filter intake. Most overhead filter designs require pumps that work against 12-24 inches of head pressure. Check your pump's performance chart to confirm it still delivers enough flow at your head height.

Other essentials include airline tubing for air intake (if your model uses it), appropriate tubing for water intake and return, and your chosen filter media. For a basic setup, stock up on mechanical filtration (filter floss, sponges), biological media (ceramic rings, bio-balls), and optionally chemical media like activated carbon for tanks where water clarity matters for aesthetics.

Step-by-Step Overhead Filter Installation

Position your filter above the tank rim on a stable, level surface. Most acrylic overhead filters hang on the tank lip or rest on a dedicated shelf. Make sure the mounting point won't shift when the filter fills with water—wet media adds surprising weight.

Connect your intake tubing to the submersible pump placed inside the tank or in your sump. Route tubing without sharp bends that restrict flow. A gentle sweep maintains better water pressure than tight curves.

Prime the system by filling your media trays with water before starting the pump. This removes air pockets that can interrupt flow and cause cavitation damage to your pump over time. When you first fire up the pump, watch for bubbles escaping the return spout—these indicate trapped air clearing from the system.

Adjust your return spout position to create gentle surface agitation. You want visible movement for oxygenation without creating currents that stress fish or blow away substrate. For tanks with delicate plants or fish that prefer still water, aim for minimal surface ripple rather than heavy turbulence.

Media Stacking Explained: The Key to Effective Filtration

The way you layer media inside your overhead filter determines how effectively it cleans your water. Each layer serves a specific purpose, and placing them in the wrong order wastes both money and filtration capacity.

Mechanical filtration comes first. This catches solid waste before it reaches your biological media. Place coarse filter floss or sponge layers in the upper trays. Replace or rinse these when flow noticeably drops—they're doing their job.

Biological media goes in the middle and lower trays. Ceramic rings, bio-balls, and lava rock provide surface area for beneficial bacteria. These bacteria convert toxic ammonia into less harmful nitrite, then into nitrates. For wet/dry designs, expose this media to air between waterings for maximum efficiency. Bacteria colonize surfaces exposed to both water and oxygen far faster than submerged-only media.

Chemical filtration goes last, if at all. Activated carbon removes medications, odors, and discoloration. Place it in the final tray where water passes through right before returning to the tank. Only run carbon when you need it—continuous use can strip beneficial trace elements from the water.

With a BaoZqua overhead filter, you get customizable tray configurations (3, 5, or 6 chamber options) that let you balance these media types according to your tank's specific needs. The modular design means you can experiment with different stacking arrangements until you find what works best for your bioload.

Tuning Flow Rate and Maintaining Your Overhead Filter

Once your overhead aquarium filter is running, observation matters more than any guide. Watch your return flow and adjust pump output until you achieve the right balance.

Too much flow stresses fish and can blow lighter substrate around. Too little flow allows detritus to build up in corners and creates dead spots where debris accumulates. The sweet spot shows gentle, consistent movement throughout the tank with no standing debris.

Schedule your maintenance around your actual observations rather than arbitrary weekly intervals. Check mechanical media every 1-2 weeks during the break-in period. Once your tank cycles and stabilizes, you might stretch this to 3-4 weeks. Rinse mechanical media in old tank water—never chlorinated tap water—during water changes to preserve beneficial bacteria.

Biological media rarely needs attention beyond topping off evaporation and occasional gentle swishing if compacted. Never replace all biological media at once; this crashes your cycle and spikes ammonia. Replace portions gradually if media deteriorates.

Every few months, inspect your intake screen for hair algae or stringy debris blocking flow. Clean tubing if you notice reduced volume despite clear media. These small maintenance steps prevent the gradual flow decline that signals problems building up.

Fixing Common Overhead Filter Mistakes

Even experienced hobbyists run into setup issues. Knowing what typically goes wrong helps you avoid the frustrations many of us have already faced.

Undersized pumps cause the most common complaints. If your filter seems sluggish despite clean media, check your pump's head height rating against your actual setup. A pump rated for 4 feet of head won't deliver its maximum flow when mounted 3 feet above the tank. Upgrade to a pump with more head capacity rather than straining your current unit.

Poor media loading creates another frequent problem. Some hobbyists stuff only activated carbon everywhere and wonder why ammonia spikes. Carbon has almost no biological surface area. Fill most of your chambers with biological and mechanical media; save carbon for specific water-polishing needs.

Air locks happen when air trapped in the system blocks water flow. Symptoms include sputtering return flow and noticeably reduced volume. Fix this by tilting the filter to let air escape, then re-priming with water. Loop the output tube slightly higher than the filter water level to prevent back-siphoning air into the system.

Algae blooms often follow overhead filter installation because more nutrients cycle through the system. This isn't the filter causing algae—it's the filter processing more waste efficiently. Address the root cause by reviewing your feeding schedule and ensuring your light period isn't excessive.

Frequently Asked Questions

How do I size a pump for an overhead aquarium filter?

Calculate your tank volume in gallons and target 4-6x that number as your hourly flow rate. A 30-gallon tank needs 120-180 GPH through the filter. Account for head height—the vertical distance from pump to filter intake—by checking the pump's performance chart at your specific head pressure, not just its maximum rating.

Can I use an overhead filter on a planted tank?

Yes, overhead filters work well for planted tanks when properly configured. Reduce flow slightly to avoid disturbing plant roots or floating species. Skip chemical filtration unless specifically needed, since activated carbon can remove beneficial trace elements that plants use. The oxygenation benefit actually supports root health.

What's the difference between wet/dry and standard overhead filters?

Wet/dry filters expose biological media to air as water trickles through, maximizing oxygen exposure for bacteria and increasing ammonia processing capacity. Standard overhead filters keep media submerged or partially submerged, which works fine for lighter bioloads but doesn't support beneficial bacteria as efficiently for heavily stocked tanks.

How often should I clean an overhead filter?

Clean mechanical media (floss, sponges) every 2-4 weeks depending on your bioload and feeding schedule. Rinse rather than replace biological media, using only old tank water to preserve bacteria colonies. Replace carbon every 4-6 weeks only when actively polishing water.
