Overhead Drip Filter Aquarium Setup: The Complete Guide

Overhead drip filters are having a moment, and for good reason. They handle biological filtration brilliantly, stay out of your tank entirely, and the waterfall effect genuinely adds dissolved oxygen. But most guides skip over the details that actually determine whether your setup will hum quietly or drive you insane at 2 AM. This guide walks through choosing the right submersible pump for your tank size, layering your biological filter media correctly, and installing the drip box at the height that eliminates noise while maximizing contact time. Everything here comes from hands-on testing, not manufacturer specsheets.

Why Overhead Drip Filters Deserve a Second Look

If you have been running a canister filter or HOB (hang-on-back) filter for years, the idea of an overhead drip filter aquarium setup might feel like a step backward. It is not. These trickle-filter systems excel in ways that conventional filters simply cannot match.

First, there is the biological filtration argument. Water cascades over stacked filter media in thin films, exposing maximum surface area to air. That oxygen-rich contact is exactly what nitrifying bacteria need to convert ammonia into nitrite and then nitrate efficiently. Your colony gets more oxygen, which means it stays robust even during heavy feeding orstocking changes.

Second, overhead drip filters sit outside your tank. They do not steal swimming space from your fish, and they are far easier to service without reaching into the water. No dismantling of in-tank equipment means less disruption to your livestock and aquascape.

Third, the waterfall effect is not just aesthetics. When water flows over the drip box lip and splashes into your tank, it agitates the surface actively. This increases gas exchange, which is especially valuable in heavily planted tanks where CO2 injection can cause other filters to strip dissolved gases, or in tanks with fish species that need high oxygen levels like goldfish or certain cichlids.

For small to medium aquariums up to roughly 55 gallons, an overhead system can genuinely outperform a comparable canister in clarity, oxygenation, and maintenance simplicity. The catch is that the setup details matter more than with sealed canister systems. Get the pump GPH right, get the media layers right, and you have a filtration system that runs for years with minimal intervention.

Matching Your Pump GPH to Tank Size

The pump you choose is the most consequential decision in any overhead drip filter aquarium installation. Too little flow and your biological media starves, ammonia spikes, and the whole point of trickle filtration collapses. Too much flow and you get a waterfall that sounds like a hotel fire alarm at midnight.

The rule of thumb for overhead drip filters is different from canister filters. Because water splashes into your tank rather than being pushed through sealed tubing, head pressure is lower. Aim for a pump that can turn over your total tank volume four to six times per hour. A 29-gallon tank works well with a pump rated around 150 to 200 GPH. A 40-gallon breeder needs something closer to 240 to 320 GPH.

One practical note: those GPH ratings on pump boxes are measured with no head height. Every foot of lift subtracts meaningful flow. If your drip box sits 18 inches above your water level, you might lose 20-30% of the rated output. Build that into your calculation and round up, not down.

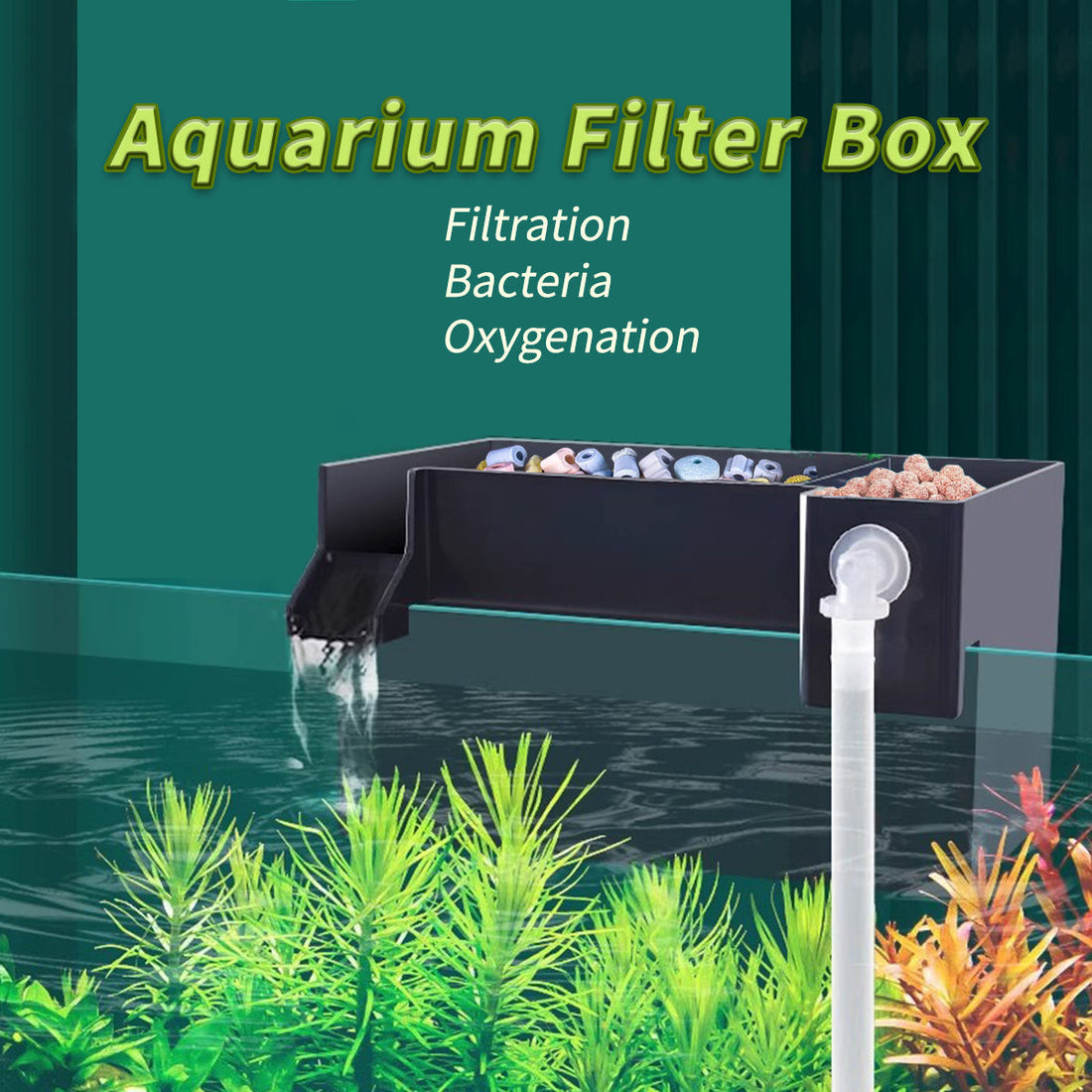

The BaoZqua wall-mounted drip box accepts standard submersible pumps, which gives you flexibility to dial in exactly the flow your tank needs without buying a proprietary cartridge system.

Also worth considering: variable-flow pumps. If you run plants that hate strong current but need the filtration, a pump with an adjustable output lets you have your trickle effect without uprooting your carpeting species every water change. That flexibility is genuinely useful in heavily planted setups.

Building Your Biological Media Layers

The magic of any overhead drip filter aquarium system happens in the biological media layers. Physical filtration catches debris, but biological filtration is what actually processes your fish waste into less toxic compounds. Without enough colonized surface area, you are just moving water around without solving your ammonia problem.

Start from the bottom of your drip box and work up. The base layer should be coarse mechanical filtration: a thick pad of filter floss or coarse foam. This catches particulate waste before it clogs your biological media above. Change or rinse this layer every two to three weeks depending on your bioload.

The biological layer above it is where you want the most volume. Bio balls, lava rock, ceramic rings, or even just clean aquarium-safe gravel all work. The key metric is surface area per volume. Lava rock and porous ceramics win on surface area, but bio balls are easier to rinse during maintenance without crushing your bacteria colony. A mix of 60% bio balls and 40% lava rock is a practical balance that many experienced hobbyists settle on.

Avoid the temptation to pack media densely. Trickle filters need air contact to work efficiently. If your media is too compacted, water slides over the surface without penetrating the layers where your bacteria live. Leave visible gaps and do not press media into every crevice.

Biofilm will develop naturally over the first four to six weeks. Do not be alarmed if the water looks slightly cloudy when you first set up your system. This is normal as the biological colony establishes. Avoid large water changes or adding filter medications during this period unless you are treating a specific infection. Let the biology find its balance.

Installing the Drip Box at the Right Height

Height placement is where most overhead drip filter aquarium setups either succeed or create problems. The drip box needs to sit above your water surface, but how far above matters more than most guides admit.

The target is 2 to 6 inches above your tank water level. At this range, water falls with enough velocity to splash and aerate without creating a torrent that disturbs substrate or spooks fish. Below 2 inches and you start getting surface noise, a gentle patter that becomes surprisingly noticeable at night. Above 6 inches and the splash zone concentrates, creating dead spots in your circulation and eventually eroding your substrate in one corner of the tank.

Mount the bracket securely. These units hold a surprising amount of water weight when full and are prone to sagging or pulling away from the wall over time if the mounting is not solid. Use appropriate anchors for your wall type, and check the bracket level before you fill the media box. A tilted drip box sends water cascading down one side rather than distributing evenly across your media.

Positioning also affects your intake hose route. The shorter and smoother the intake tube from pump to drip box, the less your pump has to work against friction losses. A kinked or excessively long intake hose will reduce effective flow and put more strain on your pump motor.

Once installed, run the system for 24 hours before adding fish. Check for drips along every connection and observe the drip box itself for any weeping at seams. A dry run now saves a midnight flood later.

Keeping Your Overhead Drip Filter Running Clean

Overhead drip filter aquarium maintenance is straightforward but follows a different rhythm than canister or HOB filter servicing. The key is gentle cleaning and avoiding any disruption to your biological colony during routine maintenance.

Every one to two weeks, pull out and rinse the mechanical floss layer in old tank water or dechlorinated water. Tap water chlorinates your bacteria colony, so never rinse your biological media under the tap. Use water you have saved from your weekly water change instead.

The biological media itself needs attention roughly monthly, but only partial. Remove the top layer of bio balls or ceramic media and give them a gentle swish in old tank water. Do not scrub them pristine. A light rinse removes accumulated debris without stripping the biofilm that took weeks to establish. If your media starts compacting or developing a smell, that is your signal to replace about one-third of it with fresh material.

Check your pump intake monthly for debris. Submersible pumps collect algae, snails, and mulm over time, and a clogged intake starves your system of flow without necessarily making obvious noise or performance drops until the problem is severe.

During water changes, inspect your drip box for any buildup on the interior walls. Algae and biofilm accumulate on any moist surface exposed to light. Wiping down the interior with an aquarium-safe algae scraper keeps the walls clean and prevents any shedding contamination from entering your tank.

Troubleshooting Common Overhead Drip Filter Problems

Every overhead drip filter aquarium setup will encounter issues at some point. Most are solvable without professional help once you understand what to look for.

If flow drops noticeably but your pump is running, the most common cause is a clogged intake strainer or a kink in the intake hose. Pull the pump, check the strainer screen for debris, and inspect the full hose length for any crushing or blockage. In rare cases, biological media that has broken down into fine particles can clog the drip box entry point; disassemble and rinse the media layers if this happens.

Excessive noise from the drip box usually traces to one of three causes: the drip box sits too high above the water surface, the water level inside the tank has dropped so the splash point is too far below the lip, or the drip box is tilted so water channels down one side rather than distributing. Adjust the height, refill your tank to the proper level, or re-level the bracket to address these.

Cloudy water that persists beyond the initial six-week cycle usually indicates either an overloaded bioload relative to your media volume or a mechanical filtration layer that has failed. Double-check your fish count against your filter capacity, and replace or rinse your floss layer if it appears saturated.

If you notice ammonia or nitrite spikes despite apparently good flow, your biological media may have been disrupted by cleaning with chlorinated water, medication dosing, or an abrupt temperature change. If a chlorine incident occurs, treat immediately with a dechlorinator and monitor your cycle. Rebuilding a crashed biological filter takes two to four weeks with careful feeding management and avoiding overstocking during recovery.

Frequently Asked Questions

How is an overhead drip filter different from a canister filter?

Overhead drip filters cascade water over exposed biological media in thin films, maximizing oxygen contact for nitrifying bacteria. Canister filters push water through sealed media chambers under pressure. Drip filters excel at gas exchange and are easier to service externally, while canister filters handle higher flow rates and mechanical filtration more efficiently in heavily stocked tanks.

Can an overhead drip filter handle a 55-gallon tank?

Yes, a properly sized overhead drip filter aquarium setup works for tanks up to 55 gallons with the right pump selection. You need a pump rated around 300 to 400 GPH after accounting for head height losses. Smaller drip boxes may require more frequent media cleaning at this volume, so check the media capacity against your bioload before committing.

How often should I clean the biological media in a drip filter?

Clean biological media every three to four weeks, using only old tank water or dechlorinated water. Never rinse with tap water. Replace roughly one-third of the media every six months to a year depending on degradation. Consistent gentle cleaning maintains your colony while preventing compaction that reduces airflow through the media.
