Overhead Filter Aquarium Setup: Media Layout & Pump Guide

When I bought my first overhead trickle filter, I spent two hours staring at the empty chambers trying to figure out where the pump went. The box said "pump required, not included"—thanks for that. Turns out, that missing piece of information is exactly what keeps most hobbyists from trying this setup. If you've been eyeing overhead filters for their superior biological filtration but keep getting stuck on the plumbing, this guide walks you through everything: pump sizing, media stacking, and the assembly that finally made my tank crystal-clear.

Why Choose an Overhead Trickle Filter for Your Tank

Overhead filters—sometimes called trickle filters or wet-dry systems—hang on the back or top of your tank and rely on gravity and air exposure to process water. Unlike submerged canister filters, the media sits partially above the waterline, so beneficial bacteria get drenched in falling water and oxygen-rich air simultaneously.

This exposure turbocharges the nitrogen cycle. Ammonia converts to nitrite, then to nitrate, faster than in fully submerged filters. The result: more stable parameters, fewer algae outbreaks, and a tank that handles stock changes without crashing.

Overhead filter aquarium setups excel in tanks with higher bioloads—think cichlids, goldfish, or heavily planted setups with dense fish populations. The modular media trays let you customize filtration intensity based on tank size and livestock load. For tanks over 40 gallons, these systems often outperform hang-on-back filters while taking up zero tank space.

The trade-off is plumbing complexity. You're connecting a pump, managing water flow rates, and arranging multiple media chambers. But once you understand the basics, the setup is straightforward—and the performance difference is undeniable.

Choosing the Right Pump Size for Your Overhead Filter

The pump is the heart of your overhead filter aquarium setup. Most overhead filter boxes list a flow range, but here's the real rule: your pump should cycle your total tank volume 3-5 times per hour through the filter.

For a 55-gallon tank, that means 165-275 gallons per hour (GPH) at the filter intake. Pump specifications usually list maximum output, but real-world flow drops 15-25% when pushing water upward against gravity and through plumbing. Size up accordingly—it's easier to throttle a too-strong pump with a ball valve than to squeeze extra flow from an undersized one.

Pump placement matters. Submersible pumps sit inside the tank, drawing water through an intake tube into the filter. Canister return pumps sit outside the tank, pushing water up to the filter. Both work; submersible pumps are simpler for most setups, while canister returns offer quiet operation and easier temperature control.

Match your pump connector size to the filter inlet. Most overhead filters use 1/2" or 5/8"barb fittings. Mismatched connections create leaks or restrict flow. When in doubt, grab threaded adapters—they're cheap insurance against a flooded cabinet.

Understanding the 5 Types of Filter Media

Every effective overhead filter aquarium setup uses a layered media strategy. Think of it like a team: each media type does a specific job, and they work best when stacked in the right order.

Mechanical filtration catches debris before it clogs deeper media. Use coarse filter floss, filter wool, or a coarse sponge at the entry point. This layer needs the most frequent cleaning—expect to rinse or replace it every 1-3 weeks depending on tank messiness.

Biological filtration hosts the bacteria that process ammonia and nitrite. Ceramic rings, bio-balls, and lava rock all work here. These need consistent water flow and oxygen but rarely need replacement—once colonized, they're permanent residents. Never clean biological media with tap water; the chlorine kills your beneficial bacteria.

Chemical filtration removes dissolved waste, medications, and odors. Activated carbon is the workhorse—use it in mesh bags or loose in dedicated trays. Phosphate removers and resin products target specific water quality issues.

The remaining two media types—pre-filters and specialty生物—round out advanced setups but aren't mandatory for most tanks.

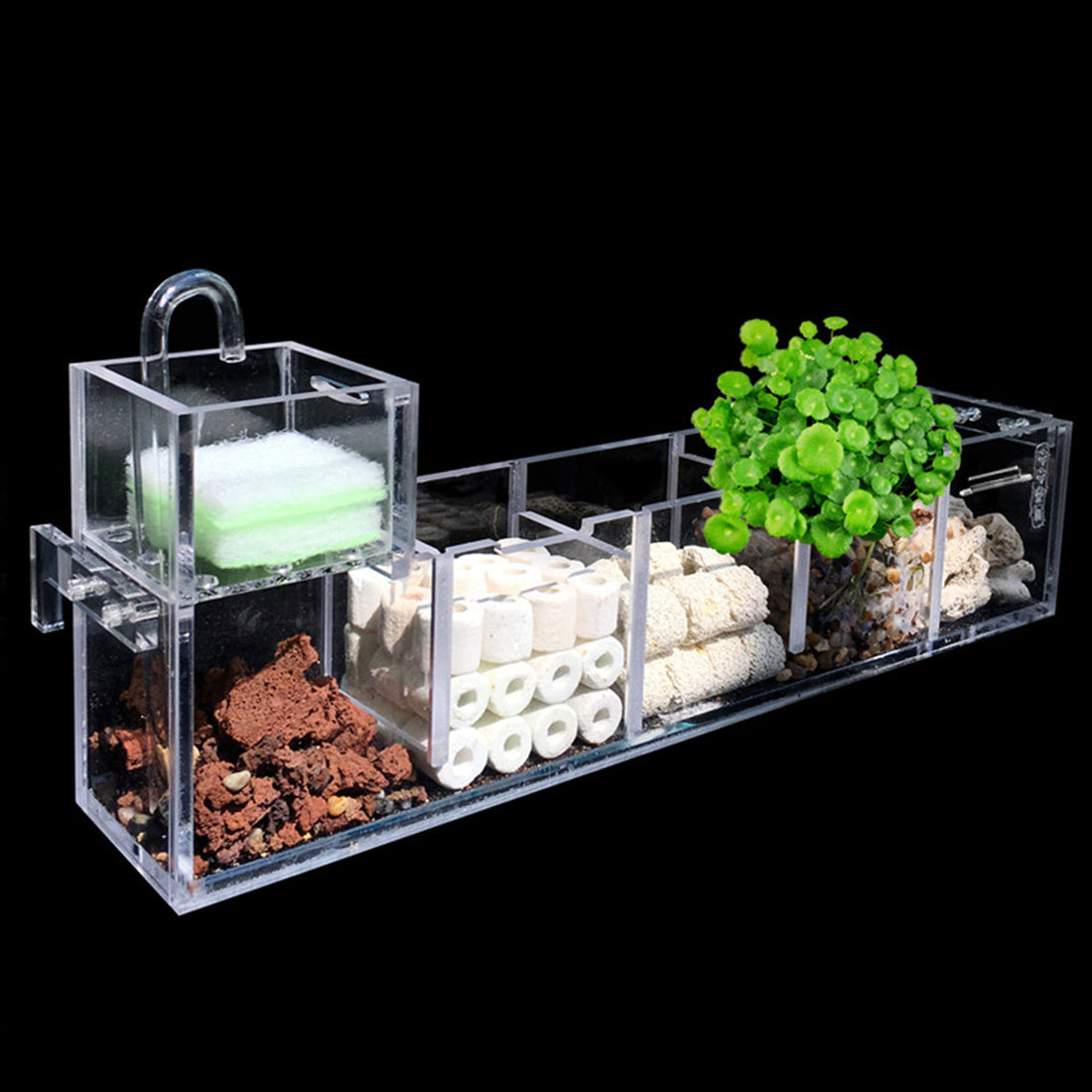

How to Stack Media in an Overhead Filter Box

Layering media correctly in your overhead filter aquarium setup directly impacts water clarity and biological capacity. Here's the sequence that works for most configurations:

First chamber: coarse mechanical (sponge or thick floss). This catches floating particles and protects downstream media from clogging.

Middle chambers: biological media (ceramic rings or bio-balls). Spread them loosely—compacted bio-media loses surface area. Leave air gaps for oxygen contact if your design allows.

Final chamber (if your box supports it): activated carbon in a mesh bag. Carbon polishes water by removing medications, tannins, and odors. Replace every 4-6 weeks for best results.

With a 5-box wet-dry configuration, the drip-through design amplifies oxygen exposure. Water cascades across each tray, creating maximum surface area for gas exchange. This setup handles higher bioloads more aggressively than a simple box filter.

For a basic 3-box setup, combine mechanical and biological in the first two chambers, leaving the third for optional chemical media. The principle stays the same: debris catches first, ammonia processes second, polishing happens last.

Step-by-Step Overhead Filter Installation

Setting up your overhead filter aquarium installation the right way saves headaches later. Here's what the process looks like:

1. Position the filter box above or on the back of your tank, ensuring it's level. The outlet should direct water back into the tank without splashing onto the rim or decor.

2. Load your media before connecting anything. Fill chambers in order: mechanical first, then biological, then chemical. Keep media loose—no tightly packed layers.

3. Connect the pump to the filter inlet using appropriate tubing. Use hose clamps on larger diameters to prevent blow-offs. Seal threaded connections with Teflon tape if leaks appear.

4. Prime the system by pouring tank water through the media from top to bottom before turning on the pump. This pre-fills the chambers and prevents the pump from running dry.

5. Fire up the pump and watch the flow. Adjust the return spout angle to create gentle surface agitation—too much splashing floods the rim, too little reduces oxygenation.

After setup, let the filter run for 24 hours before adding fish. Parameters may fluctuate slightly during the initial cycle; this is normal and resolves within 1-2 weeks.

Maintenance Schedule for Overhead Filter Systems

Consistent maintenance keeps your overhead filter aquarium setup performing at its best. Here's a practical schedule that balances tank health with your sanity:

Weekly: Check intake flow. If it slows noticeably, rinse the pre-filter sponge or floss in old tank water. Never use tap water—chlorine kills biological media. Just a quick swish in a bucket of saved tank water does the job.

Monthly: Inspect each chamber. Look for compaction, discoloration, or odor. Replace or rinse mechanical media as needed. Check that biological media hasn't dried out—keep it wet during water changes.

Every 4-6 weeks: Replace activated carbon or specialty chemical media. Old carbon stops absorbing and can leach waste back into the water.

Quarterly: Deep clean the filter box. Remove all media, rinse components in old tank water, scrub algae from the acrylic body, and reassemble. If biological media looks healthy (brown, not slimy), don't replace it—simply rinse gently and put it back.

When performing water changes, run the filter continuously. Avoid turning it off for extended periods—biological media can dry out, and restarting the cycle stresses fish.

Frequently Asked Questions

What size pump do I need for an overhead aquarium filter?

Size your pump to cycle your total tank volume 3-5 times per hour. For a 50-gallon tank, aim for 150-250 GPH at the filter inlet. Account for a 15-25% flow loss due to head pressure and plumbing resistance. Oversizing is better than undersizing—you can throttle excess flow with a valve, but you can't force more water through an undersized pump.

What order should I stack media in an overhead filter?

Stack media from entry to outlet: mechanical first (coarse floss or sponge), then biological (ceramic rings or bio-balls), then chemical last (activated carbon). This sequence traps debris before it reaches beneficial bacteria, protects bio-media from clogging, and lets carbon polish water before it returns to the tank. Keep biological media loose for maximum surface area.

How often should I clean an overhead trickle filter?

Rinse mechanical media (floss or sponge) every 1-2 weeks when flow noticeably slows. Inspect biological media monthly but only rinse if severely clogged—never with tap water. Replace chemical media like activated carbon every 4-6 weeks. A full teardown and deep clean is needed quarterly or when water quality drops despite regular maintenance.

Can beginners set up an overhead filter without prior experience?

Yes, with attention to pump sizing and media stacking. The "pump required, not included" aspect trips up many beginners, but matching a pump to your tank volume is straightforward math. The modular tray design makes media loading intuitive. Plan for 30-60 minutes of initial setup time, and don't rush the priming step before first use.

Are overhead filters good for marine and reef tanks?

Overhead filters work for marine tanks with modest fish loads, providing excellent biological filtration for the nitrogen cycle. Marine hobbyists should use corrosion-resistant pumps and rinse components with salt water or aged water to avoid mineral deposits. Combine with protein skimming and regular water changes for reef stability—overhead filters handle biological load but don't replace skimmers for dissolved organics.
